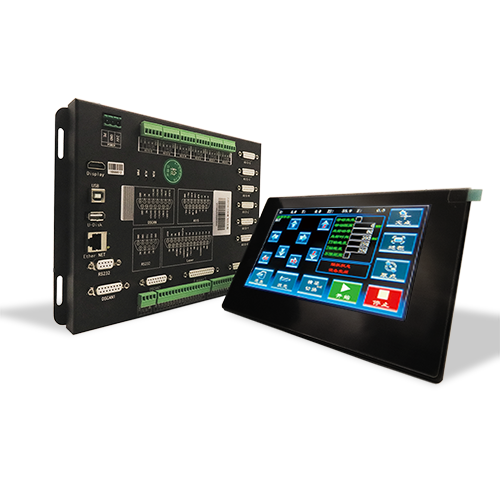

Model: ZJS713
● Ultra-high precision and fast processing (5-10 times faster than traditional cutting)
● Stable frame design and precise frame movement
● High-speed galvanometer system
● Precise galvanometer adjustment
● All-round adaptation to industrial needs
1.Multi-laser compatibility: Support RF lasers, CO2 glass tubes, fiber lasers, etc.
2.Intelligent function: reduce manual intervention, improve production continuity.

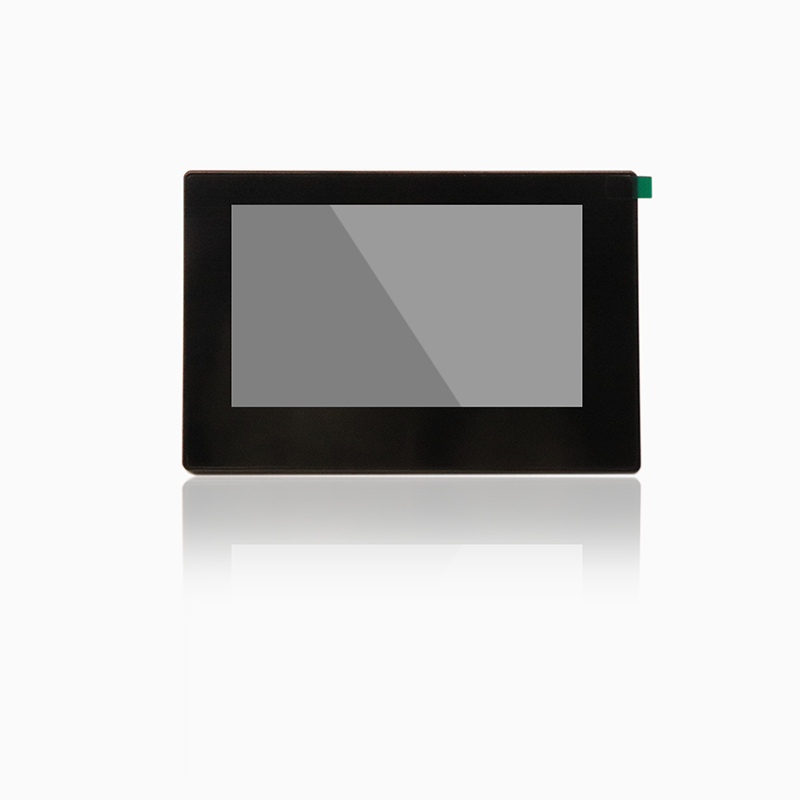

3.Seven-inch touch screen: Intuitive operation interface, graphics import, parameter adjustment is completed with one click, reducing learning costs.
4.Widely used:Clothing/Fabric/Textile, leather,shoe, glass, stainless Steel, 3C, electronic accessories, copper film and other industries
|
Model number |
ZJS713 |
|

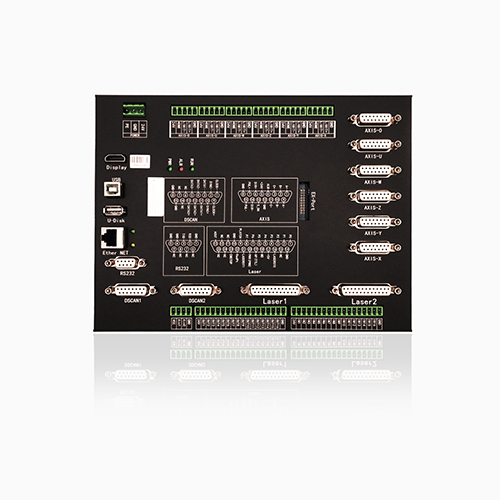

Hardware |
|
|
Screen |
Seven inches |
|
General output port |
8 |
|
General input port |
8 |
|
Number of supported platforms |
one |
|
Number of control axes |
3-axis |
|
Number of supported lasers |
1 |
|
Disk space(G) |
4 |
|
Data transmission method |
Network communication,U disk |
|
Support laser |
Radio frequency Laser, CO2 Glass tube laser, Fiber laser, Ultraviolet laser |
|
Galvanometer protocol |
XY2-100 |
|
Function |
|
|
I/O diagnostic function |
√ |
|
Counting function |
√ |
|
Processing graphics and trajectory display |
√ |
|
Flying function |
× |
|
Z-axis autofocus function |
√ |
|
Z-axis following function |
× |
|
Pause and resume function |
× |
|
Automatic feed,synchronous feed function |
√ |
|
Rotary engraving and cutting function |
√ |
|
Mutingual function |
× |
|
Processing Air Blowing and Light-Emitting Air Blowing Function |
√ |
|
Remote control function |
√ |
|
Optical path conversion function |
× |
|
Visual correction function |
× |
|
Manual correction function |
√ |
|
Password protection function |
√ |
|
Error log function |
× |
|
Dynamic axis |
√ |
|
Large graphics stitching |
√ |
Product Feature And Application
Key Features:
●The system supports large-format motion stitching, enabling seamless and high-precision processing.By automatically dividing, moving, and splicing the processing regions
● Supports offline working mode with 4G internal storage
● High-speed processing , suitable for large-area tasks
● Equipped with magnetic grid ruler, precision up to 0.005mm
● Closed-loop galvanometer control for enhanced accuracy and cutting quality
● Supports automatic production with a feeding device
● Multiple communication options: USB, network, and remote control
● 3-axis control with pulse output frequency up to 4 MHz
Application Fields:
● Cloth/Textile/Fabric cutting
● Leather processing
● Crafts and artwork engraving
● Glass engraving
● Steel mesh and stencil cutting
● Mobile phone screen protector and film processing
● Thin film and copper foil cutting
● Wood and acrylic engraving
● Lettering and marking applications
Product Details
● Control System: Supports 3-axis motion with high-speed processing capabilities
● Laser Compatibility: RF laser, CO₂ glass tube laser, fiber laser
● Precision: 0.005mm resolution magnetic grid ruler + closed-loop galvanometer control
● Processing Modes: Offline, rotary engraving
● Data Interface: USB, Ethernet, and remote access
● Intelligent Features: Auto focus, resume on power loss
● Automation: Supports auto-feeding for continuous production environments
● Machine frame: The structure that supports the main components of the laser system, including the motion axes.
● X and Y axes of the machine frame: The horizontal and vertical movement axes of the machine frame.
● Galvanometer system: A system using galvanometer-driven mirrors to precisely direct the laser beam.
● X and Y axes of the galvanometer system: The axes of the galvanometer mirrors, which direct the laser beam.
Product Advantage
● Industry first.
● High precision, fast speed, 5-10 times the traditional cutting.
● Strong algorithm
● Outstanding quality
● Plentiful practical data
