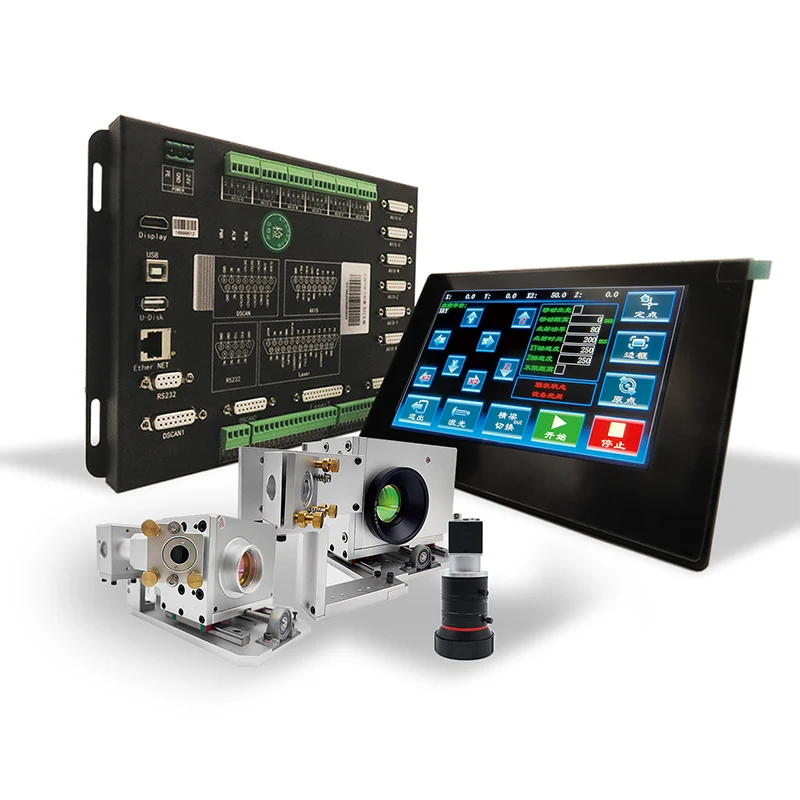

Galvo Macro Vision Laser Control System

Model: ZJS716-2000

● Large-area high-speed continuous-wave processing, significantly boosting production efficiency

● Galvanometer closed-loop control for high processing precision and excellent cutting results

● Equipped with a magnetic grid ruler, positioning accuracy up to 0.005mm

● Multi-axis linkage for pinpoint control (synchronizes with large-format vision to eliminate positioning deviations)

● Integrated carving and cutting design with a cutting conversion device, supporting both the cutting head function of ordinary laser machines and galvanometer processing mode

● Supports automatic switching via layer processing mode to meet diverse processing needs

● Panoramic visual recognition cutting/engraving; enables automated production when paired with a feeding device

● XY-axis frame & galvanometer dual-flight linkage, completing large-format graphics in one processing cycle to improve product quality

● Compatible with galvanometer cutting conversion heads with laser spot sizes of 10mm, 16mm, and 20mm

● Supports offline working mode with built-in 16G storage capacity

1. Multi-template recognition: Supports simultaneous identification of up to 100 distinct templates, with large-format vision enabling batch recognition of scattered workpieces for versatile application.

2. Breakthrough traditional equipment limitations: Integrates marking, cutting, and large-area vision positioning in one compact unit, streamlining workflow for large-scale or high-volume production.

3. Multi-laser compatibility: Works seamlessly with RF lasers, CO₂glass tubes, fiber lasers, and other mainstream laser types, adapting to diverse large-format processing needs.

4. Intelligent large-format processing functions: Enables multi-head synchronous processing, on-demand cutting and engraving mode conversion, and large-area batch positioning—drastically reducing manual intervention while enhancing production continuity and efficiency.

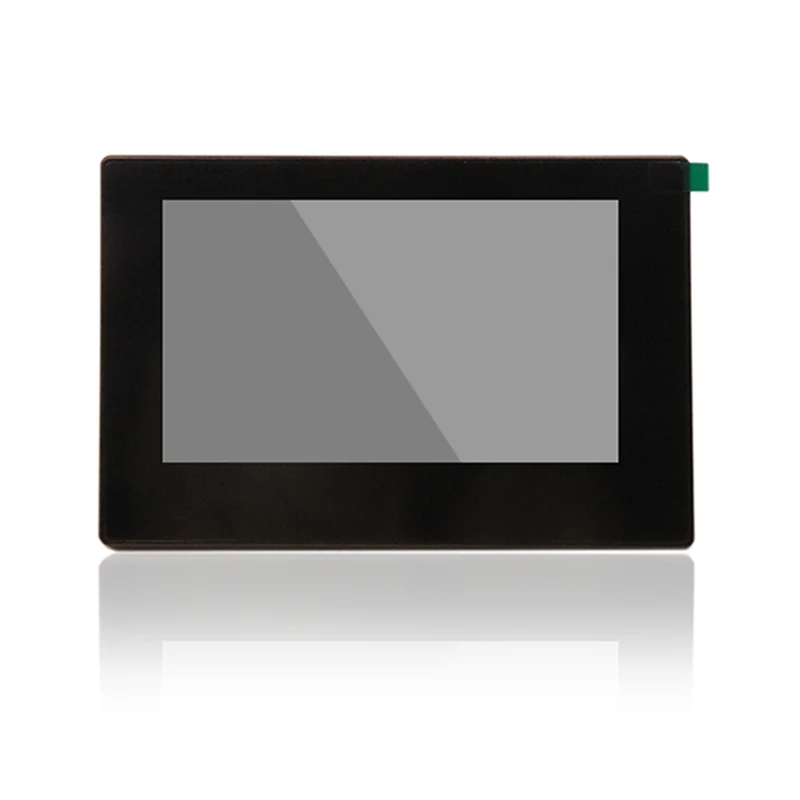

5. 7-inch touchscreen: Features an intuitive operation interface with one-click graphic import, large-format parameter adjustment, and visual field calibration—minimizing learning curves for operators even in complex large-area tasks.

6. Multiple edge-finding modes: It can fully adapting to diverse material processing needs, including black edge detection, center line detection, lace edge detection, and lace wave alignment.

Product Parameter (Specification)

Product Feature And Application

Key Features:

● Supports offline working mode with 16G internal storage

● Combines cutting and engraving functions, capable of switching between traditional laser head and galvanometer processing via layer-based mode selection

● High-speed processing with continuous light, suitable for large-area tasks

● XY frame + galvanometer dual-axis linkage enables full completion of large graphics in a single process

● Equipped with magnetic grid ruler, precision up to 0.005mm

● Closed-loop galvanometer control for enhanced accuracy and cutting quality

● Supports automatic production with a feeding device

● Multiple communication options: USB, network, and remote control

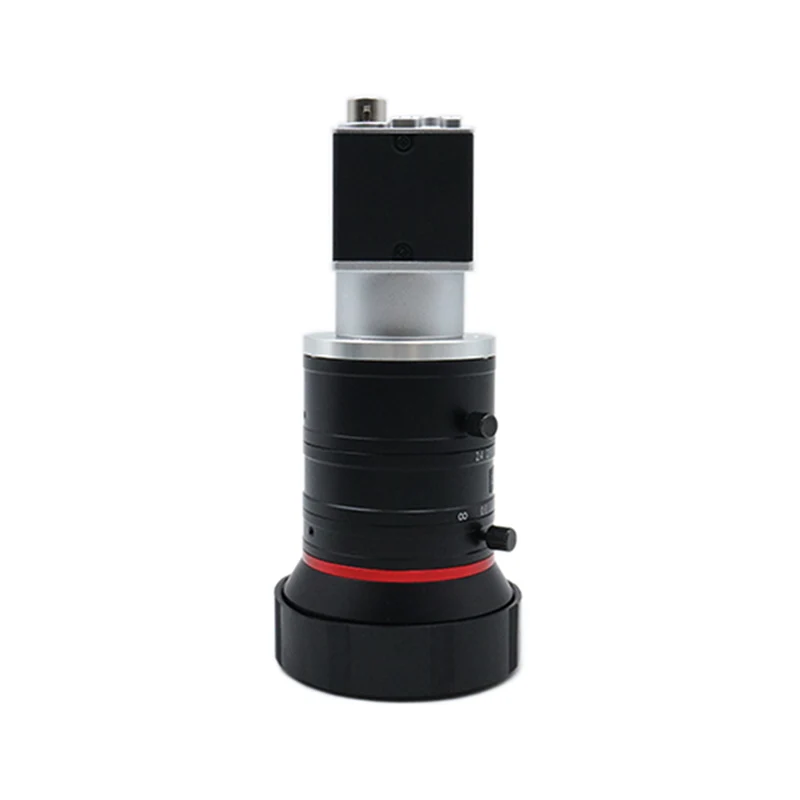

● High-precision camera enables automatic galvanometer correction

● 6-axis control with pulse output frequency up to 4 MHz

Application Fields:

● Cloth/Textile/Fabric cutting

● Leather processing

● Crafts and artwork engraving

● Glass engraving

● Steel mesh and stencil cutting

● Mobile phone screen protector and film processing

● Thin film and copper foil cutting

● Wood and acrylic engraving

● Lettering and marking applications

Product Details

● Control System: Supports 6-axis motion with high-speed processing capabilities

● Laser Compatibility: RF laser, CO₂ glass tube laser, fiber laser

● Precision: 0.005mm resolution magnetic grid ruler + closed-loop galvanometer control

● Processing Modes: Offline, visual online, multi-head sync, rotary engraving

● Data Interface: USB, Ethernet, and remote access

● Intelligent Features: Auto focus, resume on power loss, automatic visual correction

● Pulse Frequency: Up to 4M Hz for demanding applications

● Automation: Supports auto-feeding for continuous production environments

● Dual-flight: Refers to a multi-axis linkage system in the laser industry.

● Multi-axis linkage system: A system where multiple axes are coordinated for precise control in laser processing.

● Machine frame: The structure that supports the main components of the laser system, including the motion axes.

● X and Y axes of the machine frame: The horizontal and vertical movement axes of the machine frame.

● Galvanometer system: A Galvo Macro Vision Laser Control System using galvanometer-driven mirrors to precisely direct the laser beam.

● X and Y axes of the galvanometer system: The axes of the galvanometer mirrors, which direct the laser beam.

● Coordination of control: The process of synchronizing the movements of multiple axes for precise operation.

Product Advantage

● Industry first.

● High precision, fast speed, 5-10 times the traditional cutting.

● Support engraving and cutting one, cutting engraving automatic conversion.

● The galvanometer corrects automatically.

● Strong algorithm

● Outstanding quality

● Plentiful practical data
