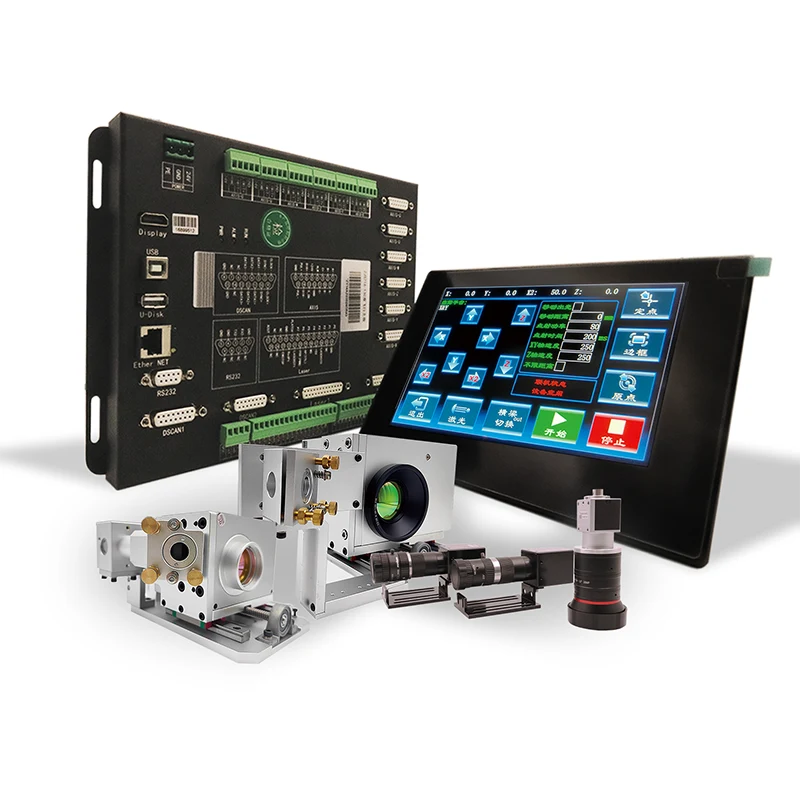

Galvo CCD Laser Control System

Model: ZJS716-130

● Efficient visual recognition and precise positioning

● Ultra-high precision and fast processing (5-10 times faster than traditional cutting)

● Automatic switching between cutting and engraving

● Galvanometer self-check and intelligent correction

● Multi-axis linkage precise control

● Stable frame design and precise frame movement

● High-speed galvanometer system

● Precise galvanometer adjustment

● All-round adaptation to industrial needs

1.Multi-template identification: Supports multi-template identification, and supports up to 100 different templates at the same time.

2.Break through the limitations of traditional equipment: Marking and cutting in one.

3.Multi-laser compatibility: Support RF lasers, CO2 glass tubes, fiber lasers, etc.

4.Intelligent function: Support multi-head synchronous processing, support cutting conversion, greatly reduce manual intervention, improve production continuity.

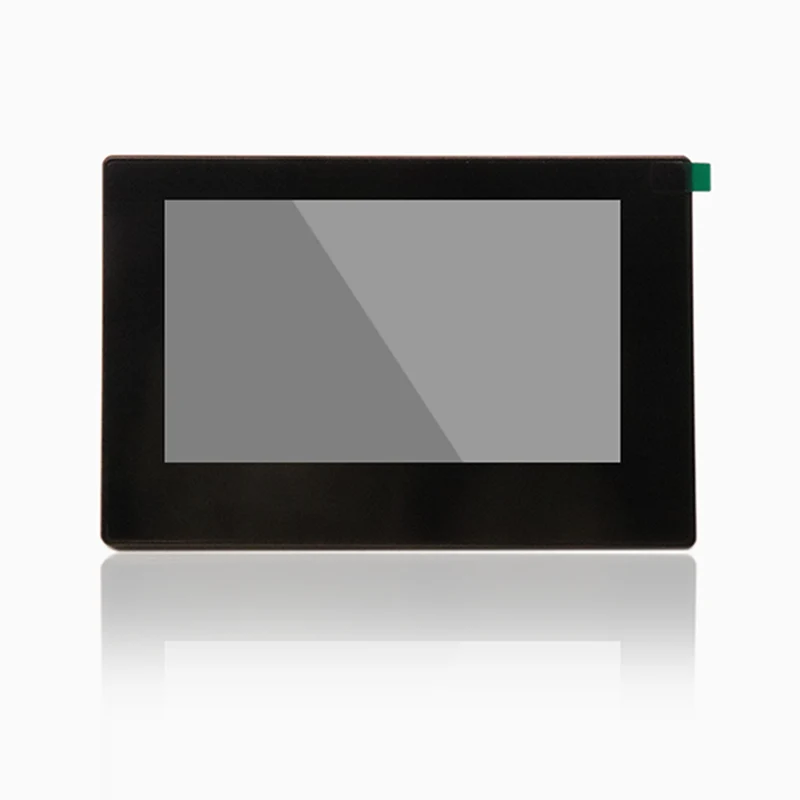

5.Seven-inch touch screen: Intuitive operation interface, graphics import, parameter adjustment is completed with one click, reducing learning costs.

6.Widely used:Clothing/Fabric/Textile, leather,shoe, glass, stainless Steel, 3C, electronic accessories, copper film and other industries.

Product Parameter (Specification)

Product Feature And Application

Key Features:

● By coordinating the X and Y axes of the frame system with the X and Y axes of the galvanometer, the system achieves precise multi-axis synchronization for high-accuracy cutting and engraving tasks.

● Delivers ultra‑clear vision and high‑precision contour extraction for complex designs.

● Supports visual contour extraction, template alignment, and automatic path generation.

● Efficiently processes full work areas with galvanometer + XY dual‑flight linkage.

● Seamlessly switches between cutting and engraving modes, supporting multi-layer processing.

● Delivers highly stable and accurate beam control for clean edge finishes.

● Includes features like auto focus, galvanometer correction, offline working mode, and continuous production with feeding integration.

Application Fields:

● Cloth/Textile/Fabric cutting

● Leather processing

● Crafts and artwork engraving

● Glass engraving

● Steel mesh and stencil cutting

● Mobile phone screen protector and film processing

● Thin film and copper foil cutting

● Wood and acrylic engraving

● Lettering and marking applications

Product Details

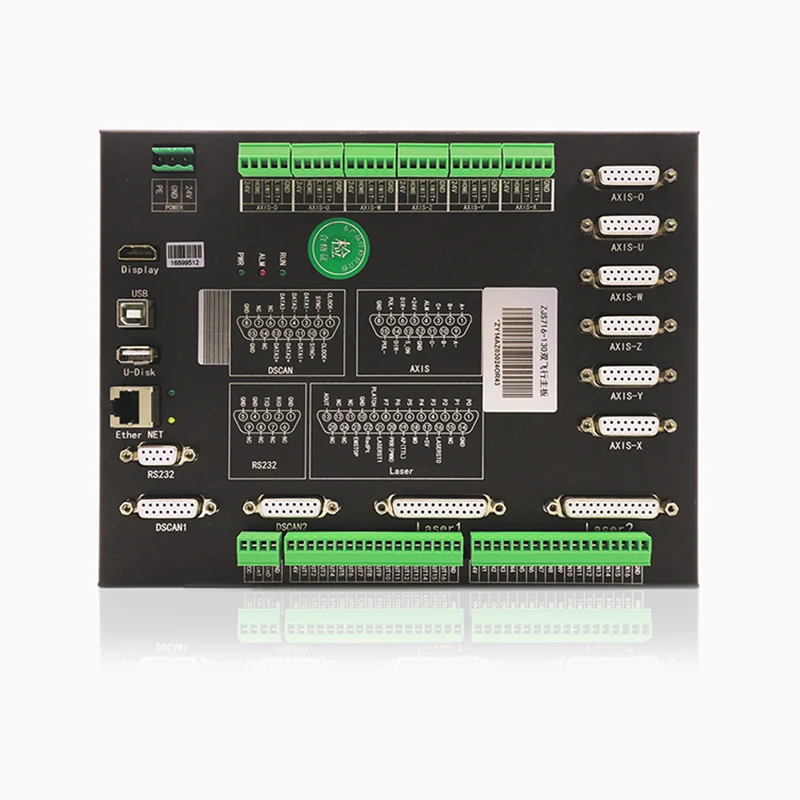

● Control System: The Galvo CCD Laser Control System supports 6-axis motion with high-speed processing capabilities.

● Laser Compatibility: RF laser, CO₂ glass tube laser, fiber laser

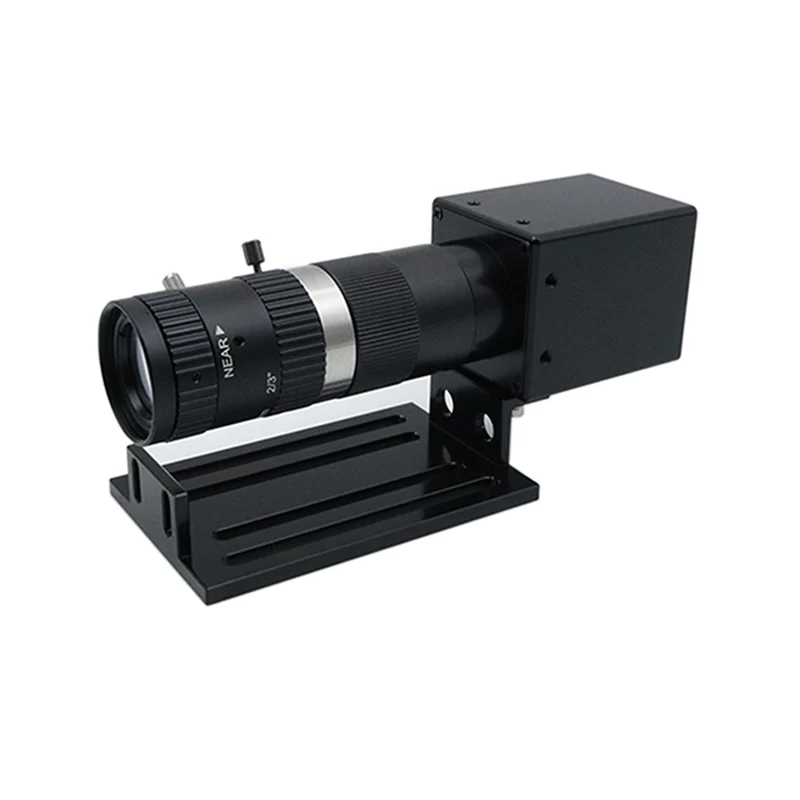

● Camera：20 MP industrial camera (supports up to 24 MP)

● Visual Accuracy: Sub-pixel positioning, galvanometer correction

● Advanced Features:Multi‑layer processing, template deformation matching

● Precision: 0.005mm resolution magnetic grid ruler + closed-loop galvanometer control

● Processing Modes: Offline, visual online, multi-head sync, rotary engraving

● Data Interface: USB, Ethernet, and remote access

● Intelligent Features: Auto focus, resume on power loss, automatic visual correction

● Automation: Supports auto-feeding for continuous production environments

● Dual-flight: Refers to a multi-axis linkage system in the laser industry.

● Multi-axis linkage system: A system where multiple axes are coordinated for precise control in laser processing.

● Machine frame: The structure that supports the main components of the laser system, including the motion axes.

● X and Y axes of the machine frame: The horizontal and vertical movement axes of the machine frame.

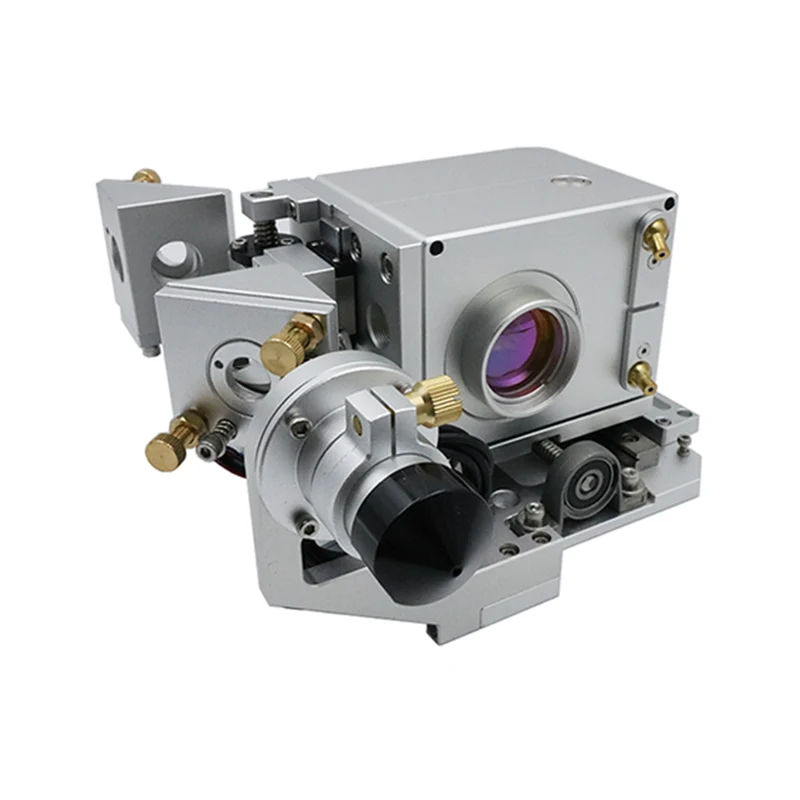

● Galvanometer system: A system using galvanometer-driven mirrors to precisely direct the laser beam.

● X and Y axes of the galvanometer system: The axes of the galvanometer mirrors, which direct the laser beam.

● Coordination of control: The process of synchronizing the movements of multiple axes for precise operation.

Product Advantage

● Industry first.

● High precision, fast speed, 5-10 times the traditional cutting.

● Support engraving and cutting one, cutting engraving automatic conversion.

● The galvanometer corrects automatically.

● Strong algorithm

● Outstanding quality

● Plentiful practical data
