An EtherCAT laser controller is a motion and process control device that uses the EtherCAT fieldbus (Ethernet for Control Automation Technology) to control industrial lasers in applications such as cutting, welding, engraving, marking, drilling, and additive manufacturing.
A laser controller regulates and synchronizes the laser's power, pulse frequency, modulation, and timing with machine motion. The laser control board ensures that the laser beam is turned on/off, modulated, or pulsed at the correct moment relative to motion axes (X, Y, Z, galvo scanners, or conveyor systems). In addition, the laser control board provides interfaces for safety interlocks, triggering, diagnostics, and monitoring, making it a central element of reliable laser-based automation systems.

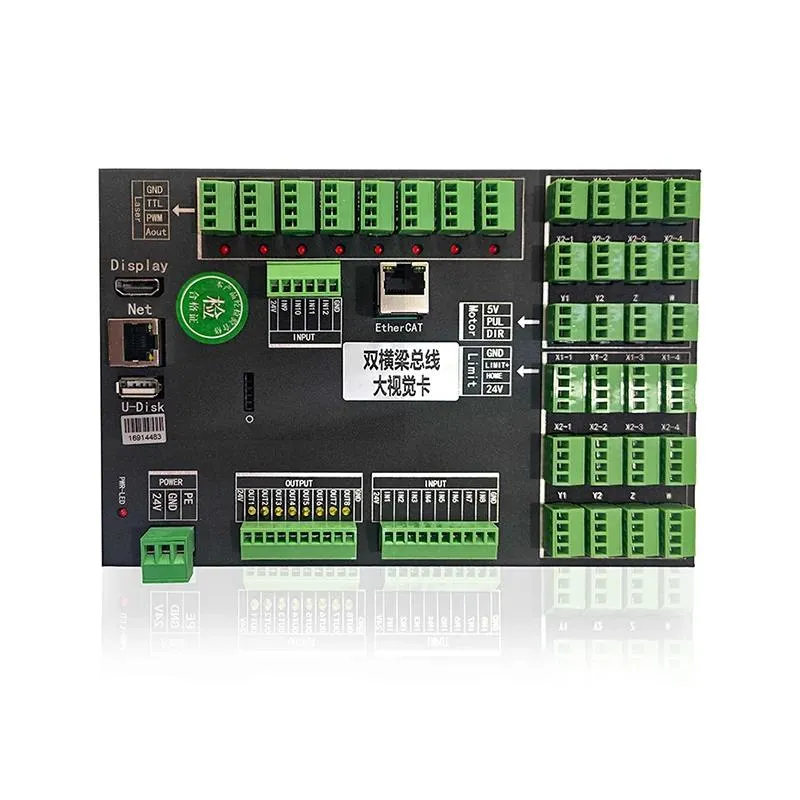

ZY72B8E Ethercat Laser Control System
Why EtherCAT Is Used in Laser Control: 1EtherCAT laser controllers support Distributed Clocks (DC), enabling nanosecond-accurate timing. This is critical in laser machining where laser pulses must align exactly with motion paths.2.A laser control board with EtherCAT allows real-time control of multi-axis motion and laser firing without delays.3. An EtherCAT-based laser control card easily integrates multiple axes, galvo scanners, cameras, and sensors on the same EtherCAT network.4. The laser control boardworks seamlessly with EtherCAT-compatible drives, I/O, and safety modules, ensuring scalable and safe system design.
In summary, an EtherCAT laser controller is a device that enables precise, real-time coordination between a laser and motion control system using EtherCAT, ensuring high-speed, synchronized, and safe operation in industrial laser processing machines. A well-designed laser control card improves productivity, accuracy, and reliability across demanding manufacturing applications.

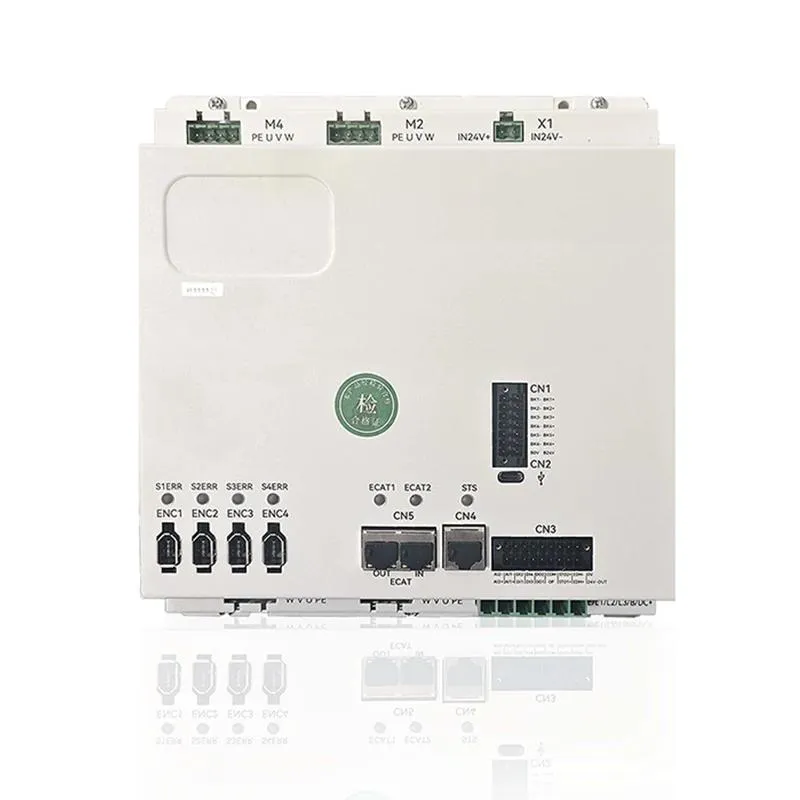

ZY72B8E Ethercat Laser Control System
