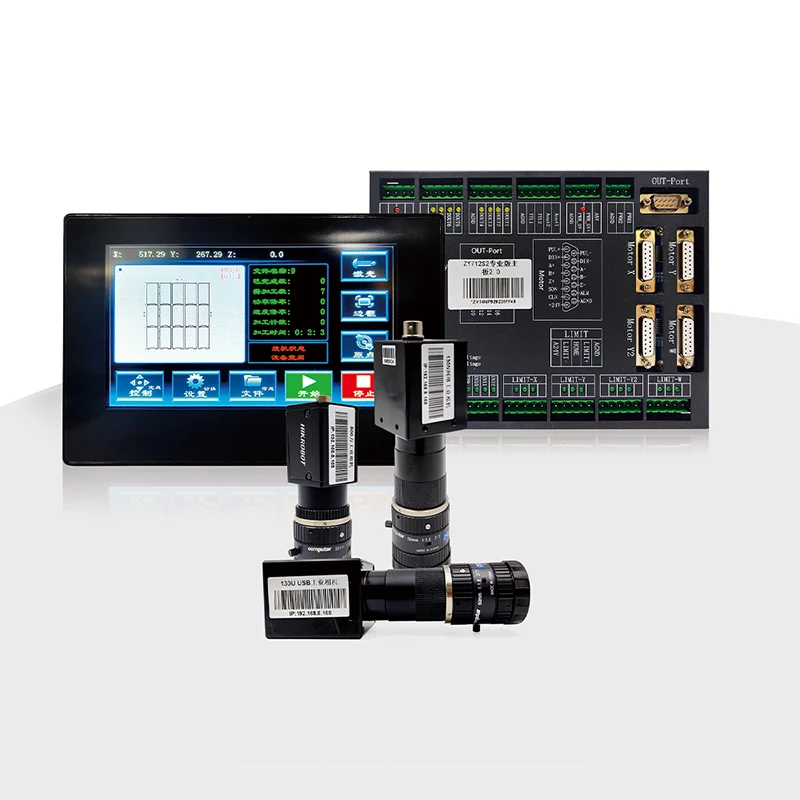

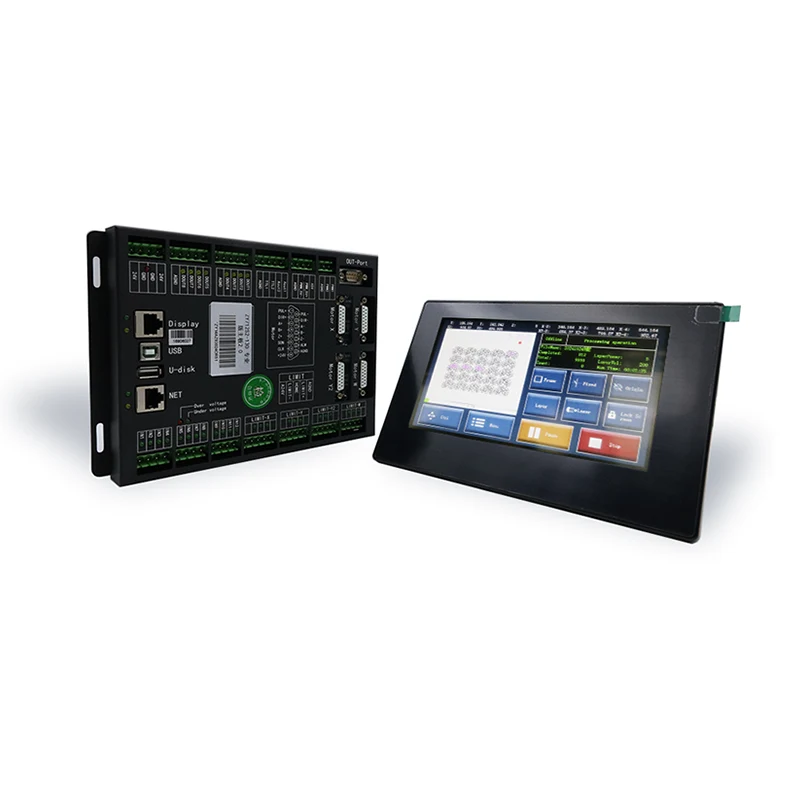

ZY712S2-130 Precision Visual Positioning Laser Controller 3C Film

Model: ZY712S2-130

The system supports multi-template recognition and allows the selection of cameras with different resolutions to suit various material processing needs, offering a flexible and adaptable solution. It also supports intelligent material feeding, automatic Z-axis focusing, and power-off resume cutting, ensuring both process stability and high operational efficiency.

With its powerful visual matching algorithm and precise motion control architecture, the ZY712S2-130 delivers consistent, high-quality results in demanding laser cutting applications.

Product Parameter (Specification)

Product Feature And Application

Key Features:

● High-precision visual positioning function, sub-pixel accuracy.

● Support pitch compensation function.

● Support closed loop, spot compensation, arbitrary position adjustment of laser power curve, a variety of light control functions and modes.

● 4-axis control, maximum pulse output frequency up to 4M, support input and output PLC function.

● Different cameras can be selected according to different processing materials, such as 360,000, 1.3 million, 5 million and above pixel industrial cameras, powerful visual matching algorithm.

● Supports multiple template identification.

● Support contour template, mark cutting function, can be applied to cutting large graphics, can process any graphics.

● Support deformation matching and scale scaling.

● Used in mobile phone protective film,mobile phone cover plate, silicon chip, touch screen, plastic, wood, leather, PU leather, paper, fiber and composite materials and other non-metallic materials.

Application Fields:

● Screen protector

● Film

● Fibre

● Silicon wafer

● Ink screen

● Static cloth

● Lens film

● Touch screen

Product Details

● High-Precision Visual Positioning：Equipped with industrial cameras, the system achieves sub-pixel level accuracy for precise recognition and alignment.

● Multi-Template Recognition：Supports multiple template matching and identification for complex batch processing.

● Advanced Compensation Functions:Includes pitch compensation, spot compensation, deformation matching, and scale scaling to ensure dimensional accuracy in all conditions.

● Versatile Motion Control:Supports up to 3-axis control, with a maximum pulse output frequency of 4 MHz.

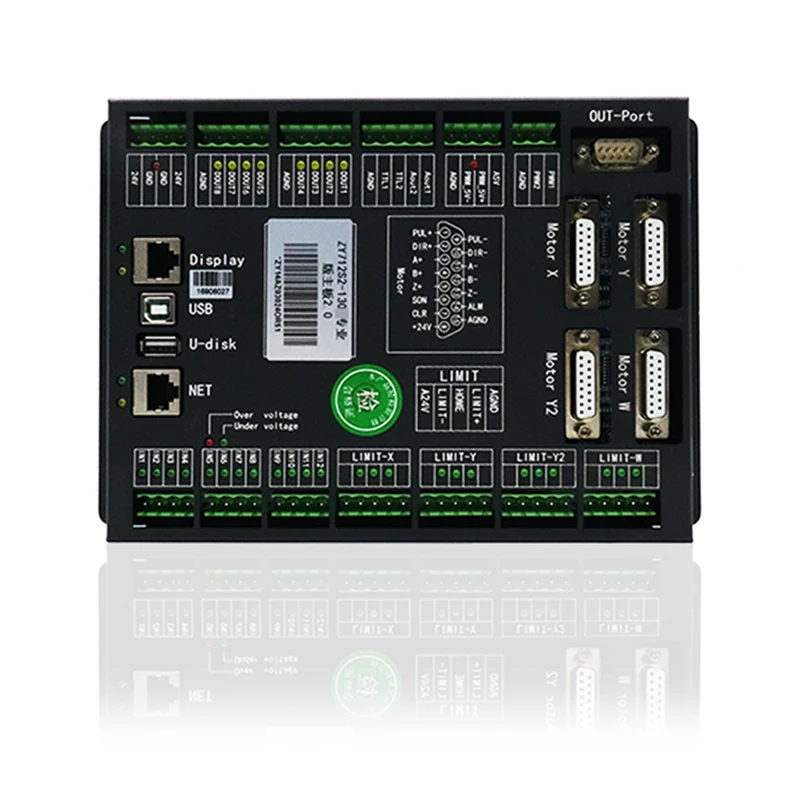

● Extensive I/O Support:16 general output ports and 12 input ports enable PLC connectivity and diverse automation integration.

● Efficient Data Handling:Offers 128MB of onboard disk space and supports both network communication and U disk for data transmission.

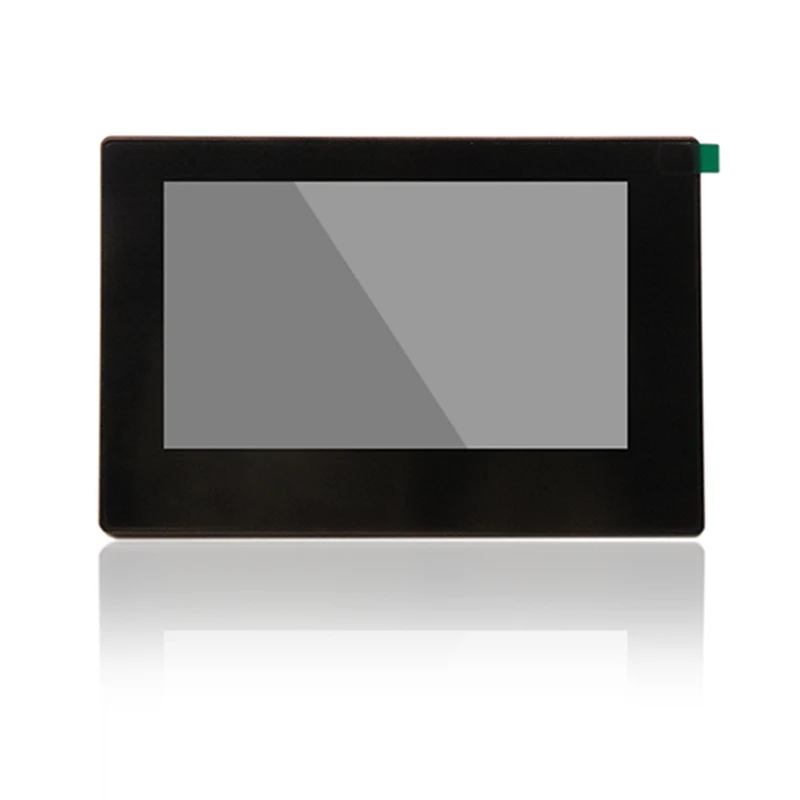

● Touchscreen Interface:A 7-inch touchscreen provides an intuitive interface for real-time control and parameter adjustment.

Product Advantage

● Stable performance

● Upport profile template

● Support deformation matching

● scale scaling

● Fast move

● High efficiency

● Strong algorithm

● Outstanding quality

● Plentiful practical data
