(1) Accurate positioning and imaging quality:
Through the format shooting, as well as a support 18 million, 24 million pixels Canon SLR cameras, high performance, or 12 million - 20 million pixels industrial camera, laser cutting machine to avoid the stitching panoramic vision graphics, making a clear photo, accurately capture material on the various details. This feature ensures that whether it is the delicate pattern elements in digital printing graphic art, or small numbers, letters, logos on clothing and shoe labels, etc., can be clearly imaged, providing a reliable basis for subsequent precise cutting, greatly improving the processing accuracy and the quality of finished products.
(2) The visual recognition software is rich in functions:
The visual recognition software equipped with high-precision edge-finding processing mode and template matching mode can not only automatically extract the outer contour of the figure, the software can automatically generate the cutting line, but also carry out batch processing according to the preset template. What is more prominent is that the graphics can be modified in part or in whole according to the actual needs. This flexibility makes it possible to quickly adjust the processing scheme to meet various personalized design needs in the face of diverse customization requirements of different customers. For example, when customizing clothing and shoe labels with unique logos or personalized slogans, it is easy to realize creative presentation.
(3) Panoramic vision system break through the limits:
Panoramic vision system is not limited by graphic size or template, only through the camera once collected images, can be of any complex graphics for precise cutting. Whether it is cutting cartoon cloth or complex flower patterns, or dealing with abstract and irregular patterns in digital printing graphic art, it can accurately realize alignment and cutting according to the original design, and support real-time modification during processing. This provides a strong technical support for the innovative design and personalized customization of products, and expands the space for various application industries to play in the appearance and function design of products.
(4) Automatic laser cutting system is efficient and convenient:
Automatic laser cutting system with automatic feeder can realize automatic continuous processing, and support a variety of processing formats, such as YZ synchronous feeding, automatic feeding, intelligent feeding, closed feeding to the specified location, etc. This means that when dealing with a large number of printed fabrics, textiles (such as curtains, plushy toy fabrics, etc.) and sublimated sportswear, warp knitted fly woven shoe uppers and other materials, it can operate efficiently, reduce manual intervention, and greatly improve production efficiency. Regardless of whether they are small batch customization, or large-scale conventional processing tasks, can be orderly completed, effectively shorten the production cycle, improve the enterprise's ability to response market demand.
(5) User-friendly operating system is easy to control:
User friendly operating system that the operating personnel can be observed in real time processing path, timely find possible problems in the process of machining and adjust, guarantee the smooth progress of the whole cutting process, reduce the operation difficulty, improved the production process control, even if is a professional and technical personnel through simple training can also be familiar with the equipment, It further improves the practicability and applicability of the equipment in actual production.

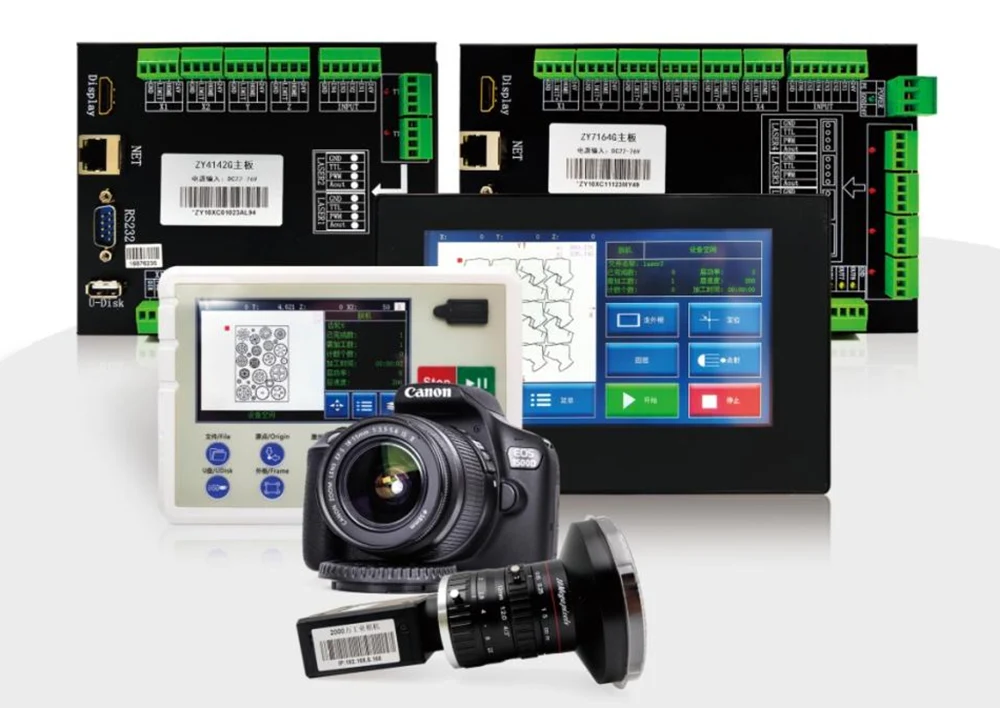

Panoramic vision laser control software
(1) Fashion industry:
It can cut all kinds of printed fabrics according to the design pattern accurately. Whether it is delicate flower patterns, individual geometric figures, or complex ethnic patterns, it can be cut with high precision along the edge of the pattern. It can accurately cut all kinds of textiles, whether it is exquisite lace pattern cutting on thin silk fabrics or complex shape cutting of thick denim, it can carry out high-precision operation along the preset lines to ensure that the size of each piece of cloth is accurate and correct, while maintaining the integrity and texture of the fabric to the greatest extent, greatly improving the efficiency and quality of clothing production. It meets the needs of consumers for well-fitting and beautiful clothes, and provides a strong guarantee for clothing brands to stand out in the fierce market competition. Ensure that the shape of each piece of cloth and printed integrity, greatly enhanced the efficiency and quality of garment cutting. It provides strong support for fashion brands to quickly respond to market trends, and helps fashion designers transform their ideas into finished products perfectly.
1) Thermal sublimation sportswear: For the processing of thermal sublimation sportswear, panoramic vision laser cutting machine can accurately cut fabrics printed with various sports elements, brand logos and other patterns to ensure the perfect fit between the pattern and the garment version. At the same time, in the face of small batch customization needs of different sizes and different styles of sportswear, it can quickly adjust the cutting scheme by supporting real-time modification of graphics and the advantages of a variety of processing formats, so as to meet the requirements of personalized customization and improve the overall beauty and professionalism of sportswear.
2) Flag: When making the flag, whether it is a large propaganda flag or a small activity flag, panoramic vision laser cutting machine can accurately cut and process the printed pattern, text and logo on the flag. Its high-precision edge-searching processing mode can ensure the regularity of the edge of the flag, and the template matching mode is convenient for mass production of the same specifications of the flag. When the flag pattern needs to be updated or personalized customized, it can also be flexible to respond to ensure the production quality and display effect of the flag.
3) Horse face skirt: As a classic work of traditional Chinese clothing, its production process is extremely exquisite. The skirt is usually covered with exquisite embroidery, printing or unique pleated design. The Panoramic Vision camera laser cutting machine can be used to cut the initial fabric of the horseface skirt. With its high-precision visual recognition system, it can accurately identify the pre-designed pattern template on the fabric, whether it is a delicate flower embroidery outline or a complex geometric printing boundary, it can be cut along the edge of the pattern to ensure that each piece of fabric used to splice the horse face skirt is accurate in shape and complete in pattern. It greatly reduces the errors that may occur in manual cutting and lays a solid foundation for the subsequent sewing process.

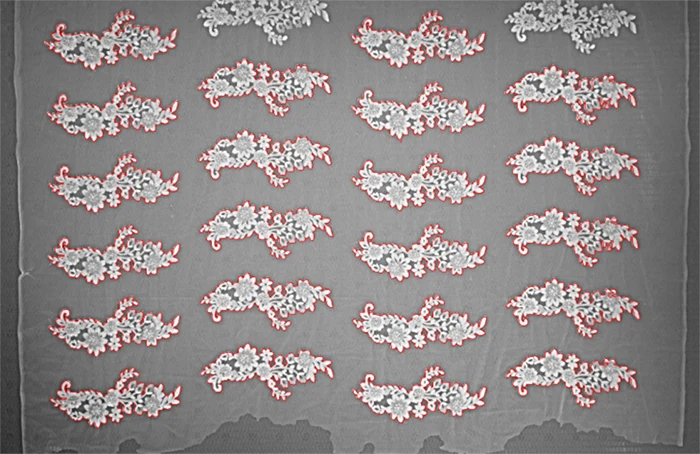

Lace Lace

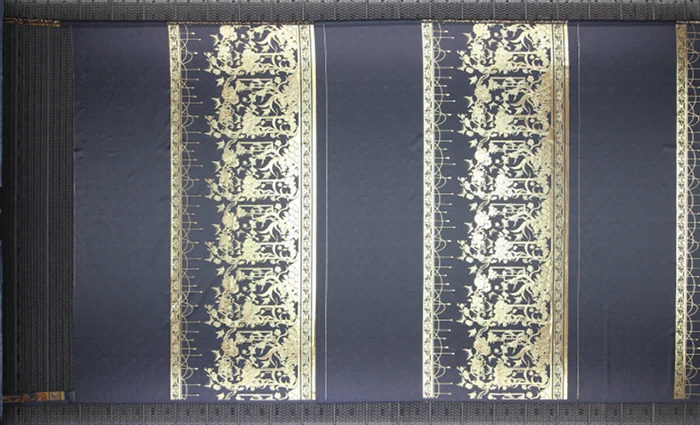

Horse face skirt cut
(2) Cultural and creative fabric products:

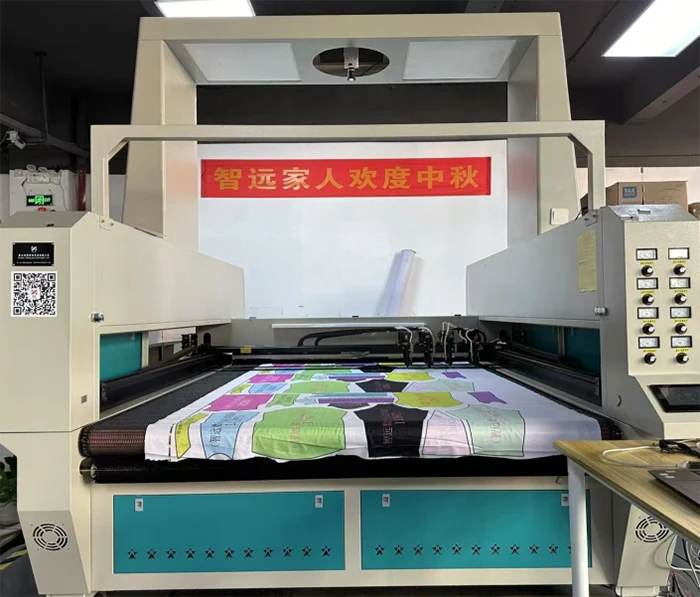

Panoramic vision camera laser cutting machine also plays a key role. It can accurately cut creative print patterns to all kinds of cloth products, such as handmade cloth bags, decorative pendants, cloth dolls, etc. This precise cutting technology not only ensures the integrity and exquisite degree of the pattern, but also realizes a variety of creative design, so that the cultural and creative fabric products are unique in the market, attracting many consumers who pursue individuality and creativity, and promoting the vigorous development of the cultural and creative fabric industry.

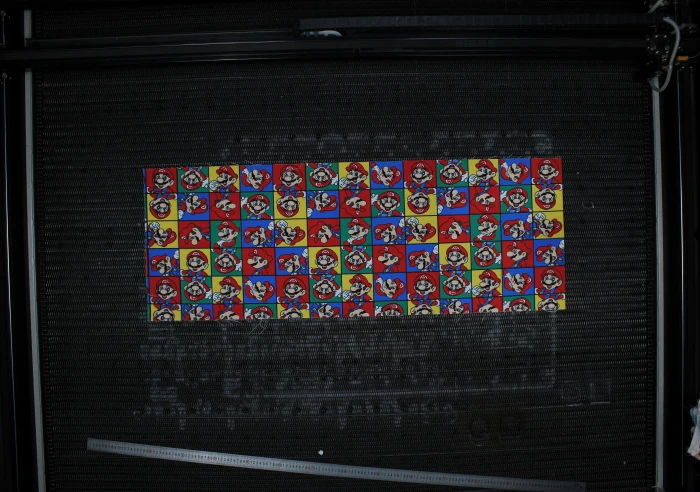

Mario cartoon searching edge

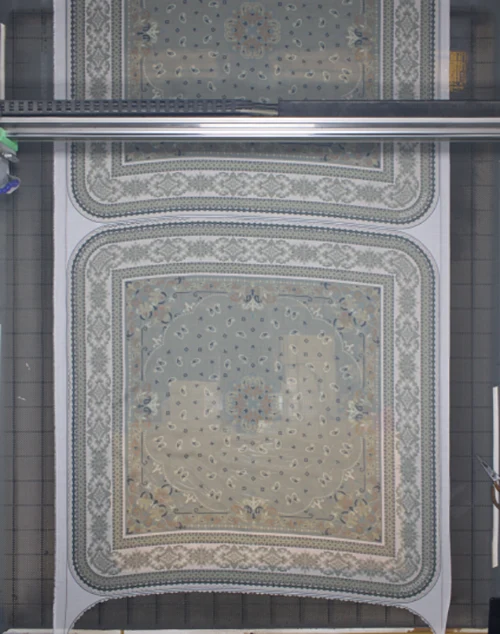

(3) Home textiles field:
Panoramic vision camera laser cutters also play an integral role. For bedding, it can accurately cut out the standard size of sheet, quilt cover and pillowcase, and can carry out delicate edge wrapping processing to make the product more durable and beautiful. In the production of curtains, in addition to accurately cutting the length and width of the cloth, but also according to different design styles, cutting unique frits, fringes and other decorative elements, improve the overall decorative effect of the curtain, to meet the consumer's pursuit of personalized and quality home environment, enhance the competitiveness and attractiveness of home textile products in the market.
(4) Industrial textile processing:
Laser cutting machine also shows strong advantages, for example, in the production of automotive interior textiles, it can accurately cut out the shape of seat cover, steering wheel cover, pad and other components, adapt to a variety of complex curve and contour design requirements, to ensure the perfect fit of products and automotive interior, improve the overall quality and comfort of automotive interior. At the same time, special textile processing in the field of aerospace, the high precision cutting capacity can satisfy the precision and stability of the strict requirements for the materials, the development of high-tech industry provide reliable technical support.

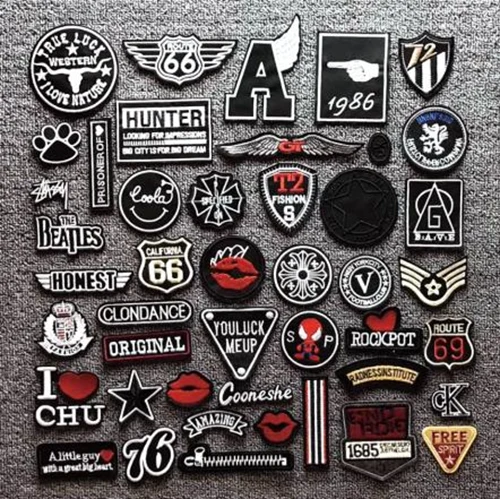

(1) Clothing and shoe label name brand:
According to different brands, styles and customer personalized requirements, quickly and accurately cut out all kinds of shapes, sizes and labels with specific content name brand. Whether it is a delicate brand that shows the brand style in high-end customized clothing, or a logo label that highlights the personality of sports brand shoes, this equipment can achieve efficient and high-quality production by virtue of its advantages, help brands to build a unique image and meet the personalized pursuit of consumers.
(2) High-precision label production:
When making labels, the high-precision edge-finding processing mode and template matching mode of visual recognition software are very important. It can accurately cut the shape of the label, ensure the clear and standardized presentation of numbers, letters, logos and other information on the label, and improve the quality of label production. And when the label design needs to be changed, it can be modified in real time, which is convenient to adapt to the label production needs of different batches and different requirements
Letter pattern
(1) Pattern processing of shoe uppers:
Warp knitted fly woven shoe uppers usually have unique texture and pattern design. Vision camera laser cutting machine can clearly capture the pattern details on the shoe uppers by its high-precision camera positioning and intelligent vision system, and accurately extract the pattern outline for cutting. Whether it is the logo pattern reflecting the brand characteristics or the decorative lines with a sense of fashion, it can be accurately presented on the upper, improve the design sense and quality of the upper, and meet the needs of consumers for personalized and fashionable footwear products.
(2) Efficient and accurate cutting of accessories:
In the processing of clothing and shoe accessories, such as large labels, the laser cutting machine can use an automatic feeder to realize automatic continuous processing, ensure the neat and smooth edge of the label through high-precision edge-finding processing mode, and use the template matching mode to achieve mass production of labels with the same specifications. At the same time, for different styles of clothing and footwear products required for a variety of shapes and sizes of accessories cutting needs, can rely on its unlimited and real-time modification of various graphics advantages, quickly and accurately complete the task, improve the overall efficiency and quality of clothing and shoes accessories production.
In terms of digital printing graphic art, panoramic vision camera laser cutting machine can accurately cut the graphics, numbers, letters and logos on the designed labels, decals and printed labels to ensure that the final product meets the design expectations, whether it is used for commercial publicity, product packaging or artistic creation and other scenes, it can show high quality printing and cutting effect. Enhance the added value and market competitiveness of digital printing products.
In the advertising printing industry, panoramic vision camera laser cutting machine greatly improves the quality and effect of advertising materials, especially when dealing with complex graphics and fine text, showing its excellent cutting accuracy. Traditional printing methods are often unable to deal with some fine lines or complex artistic design, and laser cutting machine can easily cut fine details through accurate beam control, and can even deal with difficult artistic fonts, gradient tones and subtle patterns. This high-precision cutting ability makes advertising posters, flyers and other printing materials able to present a more delicate and attractive effect. In addition, the panoramic vision camera can scan and recognize the pattern of the printed matter in real time, and automatically correct the cutting path through intelligent image recognition technology. Even in mass production, the machine can ensure the cutting accuracy and consistency of each piece of advertising material, reducing errors and waste. Therefore, advertising materials have more impact on the visual effect, which can effectively enhance the communication effect of advertising, improve the brand image, and stand out in the fierce market competition for enterprises.
The application of panoramic vision camera laser cutting machine in the printing of cultural and creative products has very great potential, especially when cutting high-precision and high-complexity cultural and creative prints. With the growth of consumer demand for personalized and high-quality cultural and creative products, laser cutting machines have become an important tool in this field by virtue of their high precision and high customization capabilities. Through the precise scanning and positioning technology of the panoramic vision camera, the laser cutting machine can perfectly present the cultural and creative products designed by artists on various materials, such as paper bookmarks, artistic patterns, brand logos, and wood crafts. In the product manufacturing process, the laser cutting technology can accurately cutting complex art design, letter and detail, make each product are full of unique artistic and individualized. Through this high-precision cutting process, consumers can buy more personalized and customized cultural and creative products to meet their needs for uniqueness and artistic value. At the same time, because laser cutting has the characteristics of non-contact cutting, it can effectively avoid damage or deformation of materials, and ensure the exquisite appearance and long durability of cultural and creative products. In addition, the laser cutting machine also can realize batch production and efficient processing, greatly promoted the industry's efficiency and production capacity, make wen gen products at a lower cost, faster into the market, and promote prosperity and development of the industry.
Panoramic vision camera laser cutting machine is able to deal with a variety of complex shapes of labels and stickers, especially in the case of involving fine contours, curves and complex designs. For example, for brand labels, decorative stickers or artistically designed labels, the laser cutting machine is able to automatically adjust the cutting path based on the feedback from the image recognition system to ensure that every detail of the label and sticker is accurately rendered. The traditional die cutting method in the face of these subtle and complex design may produce error, and laser cutting machine, with its high precision positioning and contactless way of cutting, effectively avoid these problems. Compared with traditional mechanical cutting methods, laser cutting machines do not need to prepare molds or tools, and are able to cut directly according to digital graphics, which makes the production process more flexible. When dealing with labels and stickers, producers can adjust the design graphics or the cutting path at any time, without the need to redo the mold. Especially when frequent design changes or product tests are required in the production process, the laser cutting machine can respond quickly, reducing the cost and time of adjustment. Laser cutting machine can maintain very high cutting accuracy at high speed, ensuring that the size and shape of each piece of label or sticker is completely the same. For those label designs that require precise alignment, such as two-dimensional code labels, small font labels, etc., laser cutting machine can ensure high-precision cutting, avoiding the problems such as size deviation and Angle error that may occur in traditional die-cutting methods. This is very important for the brand image and the market performance of the product, especially in mass production, to ensure the quality consistency of each label. The contactless working mode of laser cutting can not only improve the cutting accuracy, but also minimize the material waste. When producing labels and stickers, more expensive paper or special materials are usually used, and laser cutting machines can accurately cut patterns and avoid the waste of leftovers that may be caused by traditional cutting methods. This efficient utilization of materials helps enterprises reduce production costs and improve the environmental protection of production.
Digital printing
(1) The panoramic vision camera laser cutting machine integrates many advanced features and constitutes the best automation solution for digital printing, personalized labeling, textile industry and other fields. From the image by high resolution camera, to the use of visual identification software for precision processing, automatic continuous processing to the automatic laser cutting system, the whole process realized the digital and intelligent operation of the whole process. Operators with user-friendly operating system real-time observation machining path, can not only ensure production run smoothly, and timely discovery and solve possible problems, ensure the efficiency and stability of production.
(2) This kind of digital, intelligent, automation of production mode, agree with the present market demand for efficient production and product personalization, diversification. Especially in the medium and small batch production and custom processing scenario, able to quickly response to different customer customization requirements, to guarantee the quality of products at the same time, effectively reduce the production cost, improve production efficiency, promote industry development in the direction of more efficient and more innovative.
(1) The functions and features of the laser cutting machine, with its outstanding, perfect adaptation digital printing fabrics, labels, clothes, shoes, accessories and other industries of different application scenarios, satisfy the flying from thermal sublimation sportswear, warp knitting weave shoe to plush toys and other products in the design of cutting, labels, diversified demands in the aspects such as production, fabric processing. Its support for complex graphics processing power as well as the advantages of the real-time modification, for the industry's product innovation, personalization provides a strong support, help enterprises to build differentiated competitive advantage, expand the market space, and help the whole industry in the fierce market competition constant innovation and progress, to better adapt to market dynamics.
|
Category |
Panoramic visual laser control system |
|||
|
Product Model |
ZY7164G-2400 |
ZY7142G-2400 |
ZY4164G-2400 |
ZY4142G-2400 |
|
Camera (pixels) |
20 million over 24 million |
20 million /24 million |
20 million /24 million |
20 million /24 million |
|
Screen |
7" |
7" |
4.3" |
4.3 inches |
|
Gm outlet |
8 |
4 |
8 of them |
4 |
|
Universal input port |
6 |
4 |
6 |
Six |
|
Number of supported platforms |
1 |
1 |
1 |
1 |
|
Control number of axes |
6 axis |
4 axis |
6 shafts |
4 axes |
|
Support the laser number |
4 |
2 |
4 |
2 |
|
Disk space (MB) |
500 |
500 |
500 |
500 |
|
Method of data transfer |
Network communication, U disk |
|||
|
Laser support |
Rf laser, CO2 glass tube laser |
|||
|
Category |
Panoramic visual laser control system |
|||
|
Product Model |
ZY7252G-2400 |
ZY72B8G-2400 |
ZY7020-2400 |
ZY7050-2400 |
|
Camera (pixels) |
20 million /24 million |
20 million /24 million |
20 million /24 million |
20 million /24 million |
|
Screen |
7" |
7" |
7" |
7 inches |
|
Gm outlet |
8 of them |
8 |
4 |
4 |
|
Universal input port |
Six |
8 of them |
4 |
four |
|
Number of supported platforms |
2 |
2 pieces |
1 |
1 |
|
Control number of axes |
5 axes |
11 axes |
4 shafts |
4 shafts |
|
Support the laser number |
2 |
8 |
2 |
2 |
|
Disk space (MB) |
500 |
500 |
128 |
128 |
|
Method of data transfer |
Network communication, U disk |
|||
|
Laser support |
Rf laser, CO2 glass tube laser |
|||
|
Category |
Panoramic Vision laser control system |
|||
|
Product Model |
ZY7164G-2400 |
ZY7142G-2400 |
ZY4164G-2400 |
ZY4142G-2400 |
|
Machine vision |
Support |
Support |
Support |
Support |
|
I/O Diagnostics |
Support |
Support |
Support |
Support |
|
The count function |
support |
Support |
Support |
Support |
|
Graphics processing, trajectory display |
support |
Support |
Support |
Support |
|
Dispensing function |
Support |
Support |
Support |
Support |
|
Z-axis autofocus feature |
support |
Support |
Support |
Support |
|
Power off continue cutting function |
Support |
Support |
Support |
Support |
|
Automatic feeding, material |
support |
support |
Support |
Support |
|
Ultra wide cutting |
Support |
Support |
Support |
Support |
|
Rotary engraving cutting function |
support |
Support |
Support |
Support |
|
Mirror cut |
Support |
Support |
Support |
Support |
|
Multilingual |
Support |
Support |
Support |
Support |
|
Offline pause can move, point, modify layer parameters such as power and speed |
support |
Support |
Support |
Support |
|
Bull move each |
support |
Support |
Support |
Support |
|
Processing blowing, blowing out the light, according to the layer blowing |
support |
Support |
Support |
Support |
|
Layer pause |
support |
Support |
Support |
Support |
|
IO configuration |
Support |
Support |
Support |
Support |
|
Remote control |
Support |
Support |
Support |
Support |
|
File search |
Support |
Support |
No support |
Not supported |
|
Cutting machine model, cut the ribbon |
support |
Support |
Support |
Support |
|
Single/double belt machining |
Support |
Support |
Support |
Support |
|
Dual platform machining |
Does not support |
Not supported |
Not supported |
Not supported |
|
Category |
Panoramic Vision laser control system |
|||
|
Product Model |
ZY7252G-2400 |
ZY72B8G-2400 |
ZY7020-2400 |
ZY7050-2400 |
|
Machine vision |
Support |
Support |
Support |
Support |
|
I/O Diagnostics |
Support |
Support |
No support |
Not supported |
|
The count function |
Support |
Support |
Support |
Support |
|
Graphics processing, trajectory display |
Support |
support |
Support |
Support |
|
Dispensing function |
Support |
Support |
Support |
Support |
|
Z-axis autofocus feature |
Support |
Support |
Support |
Support |
|
Power off continue cutting function |
Support |
Support |
Support |
Support |
|
Automatic feeding, material |
Support |
Support |
Support |
Support |
|
Ultra wide cutting |
Support |
Support |
Support |
Support |
|
Rotary engraving cutting function |
Support |
Support |
Support |
Support |
|
Mirror cut |
Support |
Support |
Support |
Support |
|
Multilingual |
Support |
Support |
Support |
Support |
|
Offline pause can move, point, modify layer parameters such as power and speed |
Support |
Support |
Partial support |
Partial support |
|
Bull move each |
Support |
Support |
Support |
Support |
|
Processing blowing, blowing out the light, according to the layer blowing |
Support |
Support |
Support |
Support |
|
Layer pause |
Support |
Support |
Support |
Support |
|
IO configuration |
Support |
Support |
No support |
Not supported |
|
Remote control |
Support |
Support |
Support |
support |
|
File search |
Support |
Support |
No support |
Not supported |
|
Cutting machine model, cut the ribbon |
No support |
Not supported |
Not supported |
Not supported |
|
Single/double belt machining |
Support |
Support |
Support |
Support |
|
Dual platform machining |
Support |
Support |
No support |
Support |
|
Category |
Panoramic Vision laser control system |
|
|
Product Model |
ZY7164G-2400 |
ZY7142G-2400 |
|
After sales service |
Online support/response within 1 hour to detailed operation instruction manual and video explanation of general problems |
Online support/respond to detailed manual and video explanation of general problems within 1 hour |
|
Warranty |
A year |
One year |
|
Whether the custom |
No custom |
No customization |
|
Standard parts |
Standard parts |
Standard parts |
|
category |
laser control card Laser Control Card |
The laser control card laser control card |
|
Transport packaging |
The cartons/bags/carton/bubble bags with foam |
Cartons/paper bags/cartons/bubble bags with foam |
|
Packing size |
260*210*90MM |
260*210*90MM |
|
Product weight |
2.35 KG |
2.25 KG |
|
Packing weight |
2.55 KG |
2.45 KG |
|
process |
SMT/DIP |
SMT/DIP |
|
Color |
black |
black |
|
Quality |
The company custom |
Company Custom |
|
MOQ MOQ |
1 |
1 |
|
The logo printing |
Support |
Support |
|
Custom service |
support |
Support |
|
Product materials |
Plastic/metal/glass, etc |
Plastic/metal/glass, etc |
|
Industry application |
Digital printing, cloth, clothes, sportswear, fabric, leather, solar panels |
Digital printing, cloth, clothes, sportswear, fabric, leather, solar panels |
|
Strengths and selling points |
Stable performance of high precision edge vision, template matching technology combined support template deformation industry leader |
Stable performance of high precision edge vision, template matching technology combined support template deformation industry leader |
|
Certification/certificate |
CE, FCC, ROHS |
CE, FCC, ROHS |
|
Contains parts |
Motherboard/touch screen/power cord/cable/camera/lens, etc |
Motherboard/touch screen/power cord/network cable/camera/lens, etc |
|
Power supply |
24 v DC |
24 v DC |
|
Software environment |
Windows (with the exception of Vista) |
Windows(except Vista) |
|
Support the file format |
PLT, HGP, the ai, DXF, DST, SPL, BMP, Jpg, jpeg, PNG, GIF, tiff, etc |
PLT, HGP, the ai, DXF, DST, SPL, BMP, Jpg, jpeg, PNG, GIF, tiff, etc |
|
Laser application software |
Powercut |
Powercut |
|
TTL level output |
50mA |
50mA |
|
PWM frequency |
0.1 k - 50 k, adjustable |
0.1 k - 50 k, adjustable |
|
The PWM duty cycle |
0.1% ~ 99.9%, and adjustable |
0.1% ~ 99.9%, and adjustable |
|
PWM value |
Up to 5.0 V |
Up to 5.0V |
|
Drive capability |
50mA |
50mA |
|
The motor controls the pulse frequency |
1M |
1M |
|
Multilingual |
Chinese/English |
Language customization is |
|
Category |
Panoramic Vision laser control system |
|
|
Product Model |
ZY4164G-2400 |
ZY4142G-2400 |
|
After sales service |
Online support/respond to detailed manual and video explanation of general problems within 1 hour |
Online support / 1 hour response detailed operating instruction manual and video on video the interpretation of standard questions |
|
Warranty |
One year |
One year |
|
Whether the custom |
No customization |
No customization |
|
Standard parts |
Standard parts |
Standard parts |
|
category |
laser control card Laser Control Card |
laser control card Laser Control Card |
|
Transport packaging |
Cartons/paper bags/cartons/bubble bags with foam |
The cartons/bags/carton/bubble bags with foam |
|
Packing size |
260*210*90MM |
260*210*90MM |
|
Product weight |
1.95 KG |
1.95 KG |
|
Packing weight |
2.2 KG |
2.2 KG |
|
process |
SMT/DIP |
SMT/DIP |
|
Color |
Black/white |
Black/White |
|
Quality |
Company Custom |
Company Custom |
|
MOQ MOQ |
1 |
1 |
|
The logo printing |
Support |
Support |
|
Custom service |
Support |
Support |
|
Product materials |
Plastic/metal/glass, etc |
Plastic/metal/glass, etc |
|
Industry application |
Digital printing, cloth, clothes, sportswear, fabric, leather, solar panels |
Digital printing, cloth, clothes, sportswear, fabric, leather, solar panels |
|
Strengths and selling points |
Stable performance of high precision edge vision, template matching technology combined support template deformation industry leader |
Stable performance of high precision edge vision, template matching technology combined support template deformation industry leader |
|
Certification/certificate |
CE, FCC, ROHS |
CE, FCC, ROHS |
|
Contains parts |
Motherboard/touch screen/power cord/network cable/camera/lens, etc |
Motherboard/touch screen/power cord/network cable/camera/lens, etc |
|
Power supply |
24 v DC |
24 v DC |
|
Software environment |
Windows(except Vista) |
Windows(except Vista) |
|
Support the file format |
PLT, HGP, the ai, DXF, DST, SPL, BMP, Jpg, jpeg, PNG, GIF, tiff, etc |
PLT, HGP, the ai, DXF, DST, SPL, BMP, Jpg, jpeg, PNG, GIF, tiff, etc |
|
Laser application software |
Powercut |
Powercut |
|
TTL level output |
50mA |
50mA |
|
PWM frequency |
0.1 k - 50 k, adjustable |
0.1 k - 50 k, adjustable |
|
The PWM duty cycle |
0.1% ~ 99.9%, and adjustable |
0.1% ~ 99.9%, and adjustable |
|
PWM value |
Up to 5.0V |
Up to 5.0V |
|
Drive capability |
50mA |
50mA |
|
The motor controls the pulse frequency |
1M |
1M |
|
Multilingual |
Language customization is |
Language customization is |
|
Category |
Panoramic Vision laser control system |
|
|
Product Model |
ZY7252G-2400 |
ZY72B8G-2400 |
|
After sales service |
Online support / 1 hour response detailed operating instruction manual and video on video the interpretation of standard questions |
Online support / 1 hour response detailed operating instruction manual and video on video the interpretation of standard questions |
|
Warranty |
One year |
One year |
|
Whether the custom |
No customization |
No customization |
|
Standard parts |
Standard part |
Standard parts |
|
category |
The laser control card laser control card |
laser control card Laser Control Card |
|
Transport packaging |
Cartons/paper bags/cartons/bubble bags with foam |
Cartons/paper bags/cartons/bubble bags with foam |
|
Packing size |
260*210*90MM |
260*210*90MM |
|
Product weight |
|
2.45 KG |
|
Packing weight |
|
2.6 KG |
|
process |
SMT/DIP |
SMT/DIP |
|
Color |
black |
black |
|
Quality |
Company Custom |
Company Custom |
|
MOQ MOQ |
1 |
1 |
|
The logo printing |
support |
Support |
|
Custom service |
Support |
Support |
|
Product materials |
Plastic/metal/glass, etc |
Plastic/metal/glass, etc |
|
Industry application |
Digital printing, cloth, clothes, sportswear, fabric, leather, solar panels |
Digital printing, cloth, clothes, sportswear, fabric, leather, solar panels |
|
Strengths and selling points |
Stable performance of high precision edge vision, template matching technology combined support template deformation industry leader |
Stable performance of high precision edge vision, template matching technology combined support template deformation industry leader |
|
Certification/certificate |
CE, FCC, ROHS |
CE, FCC, ROHS |
|
Contains parts |
Motherboard/touch screen/power cord/network cable/camera/lens, etc |
Motherboard/touch screen/power cord/network cable/camera/lens, etc |
|
Power supply |
24 v DC |
24 v DC |
|
Software environment |
Windows(except Vista) |
Windows(except Vista) |
|
Support the file format |
PLT, HGP, the ai, DXF, DST, SPL, BMP, Jpg, jpeg, PNG, GIF, tiff, etc |
PLT, HGP, the ai, DXF, DST, SPL, BMP, Jpg, jpeg, PNG, GIF, tiff, etc |
|
Laser application software |
Powercut |
Powercut |
|
TTL level output |
50mA |
50mA |
|
PWM frequency |
0.1 k - 50 k, adjustable |
0.1 k - 50 k, adjustable |
|
The PWM duty cycle |
0.1% ~ 99.9%, and adjustable |
0.1% ~ 99.9%, and adjustable |
|
PWM value |
Up to 5.0V |
Up to 5.0V |
|
Drive capability |
50mA |
50mA |
|
The motor controls the pulse frequency |
1M |
1M |
|
Multilingual |
Language customization is supported in Chinese/English |
Language customization is supported in Chinese/English |
|
Category |
Panoramic Vision laser control system |
|
|
Product Model |
ZY7020-2400 |
ZY7050-2400 |
|
After sales service |
Online support/respond to |
Online support / 1 hour response |
|
Warranty |
One year |
One year |
|
Whether the custom |
No customization |
No customization |
|
Standard parts |
Standard parts |
Standard parts |
|
category |
The laser control card laser control card |
laser control card Laser Control Card |
|
Transport packaging |
Cartons/paper bags/cartons/bubble bags with foam |
Cartons/paper bags/cartons/bubble bags with foam |
|
Packing size |
260*210*90MM |
260*210*90MM |
|
Product weight |
2.3 KG |
2.65 KG |
|
Packing weight |
2.6 KG |
2.9 KG |
|
process |
SMT/DIP |
SMT/DIP |
|
Color |
black |
black |
|
Quality |
Company Custom |
Company Custom |
|
MOQ MOQ |
1 |
1 |
|
The logo printing |
Support |
Support |
|
Custom service |
Support |
Support |
|
Product materials |
Plastic/metal/glass, etc |
Plastic/metal/glass, etc |
|
Industry application |
Digital print, fabric, clothing, sportswear, fabric, leather, solar panels |
Digital printing, cloth, clothes, sportswear, fabric, leather, solar panels |
|
Strengths and selling points |
Stable performance of high precision edge vision, template matching technology combined support template deformation industry leader |
Stable performance of high precision edge vision, template matching technology combined support template deformation industry leader |
|
Certification/certificate |
CE, FCC, ROHS |
CE, FCC, ROHS |
|
Contains parts |
Motherboard/touch screen/power cord/network cable/camera/lens, etc |
Motherboard/touch screen/power cord/network cable/camera/lens, etc |
|
Power supply |
24 v DC |
24 v DC |
|
Software environment |
Windows(except Vista) |
Windows(except Vista) |
|
Support the file format |
PLT, HGP, the ai, DXF, DST, SPL, BMP, Jpg, jpeg, PNG, GIF, tiff, etc |
PLT, HGP, the ai, DXF, DST, SPL, BMP, Jpg, jpeg, PNG, GIF, tiff, etc |
|
Laser application software |
Powercut |
Powercut |
|
TTL level output |
50mA |
50mA |
|
PWM frequency |
0.1 k - 50 k, adjustable |
0.1 k - 50 k, adjustable |
|
The PWM duty cycle |
0.1% ~ 99.9%, and adjustable |
0.1% ~ 99.9%, and adjustable |
|
PWM value |
Up to 5.0V |
Up to 5.0V |
|
Drive capability |
50mA |
50mA |
|
The motor controls the pulse frequency |
1M |
1M |
|
Multilingual |
Language customization is |
Language customization is |
-
