Galvo Precision Visual Laser Engraving (Cutting) Splicing System

Model: ZJS713-130

● Efficient visual recognition and precise positioning

● Ultra-high precision and fast processing (5-10 times faster than traditional cutting)

● Galvanometer self-check and intelligent correction

● Stable frame design and precise frame movement

● High-speed galvanometer system

● Precise galvanometer adjustment

● All-round adaptation to industrial needs

1.Multi-template identification: Supports multi-template identification, and supports up to 100 different templates at the same time

2.Break through the limitations of traditional equipment: Marking and cutting in one.

3.Multi-laser compatibility: Support RF lasers, CO2 glass tubes, fiber lasers, etc.

4.Intelligent function: reduce manual intervention, improve production continuity.

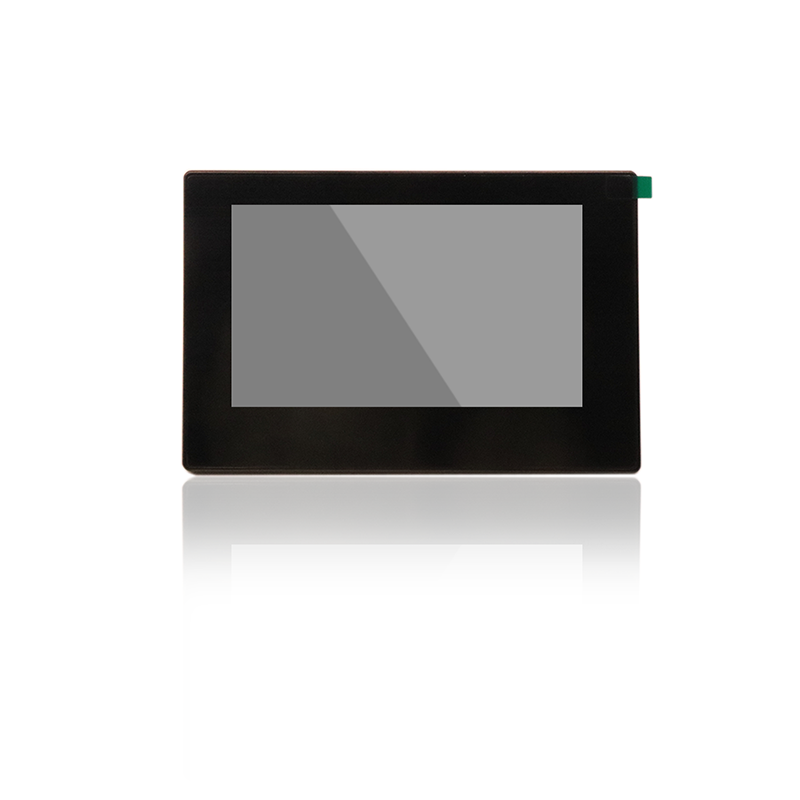

5.Seven-inch touch screen: Intuitive operation interface, graphics import, parameter adjustment is completed with one click, reducing learning costs.

6.Widely used:Clothing/Fabric/Textile, leather,shoe, glass, stainless Steel, 3C, electronic accessories, copper film and other industries.

Product Feature And Application

Key Features:

●The system supports large-format motion stitching, enabling seamless and high-precision processing.By automatically dividing, moving, and splicing the processing regions

● Delivers ultra‑clear vision and high‑precision contour extraction for complex designs.

● Supports visual contour extraction, template alignment, and automatic path generation.

● Delivers highly stable and accurate beam control for clean edge finishes.

● Includes features like auto focus, galvanometer correction, offline working mode, and continuous production with feeding integration.

Application Fields:

● Cloth/Textile/Fabric cutting

● Leather processing

● Crafts and artwork engraving

● Glass engraving

● Steel mesh and stencil cutting

● Mobile phone screen protector and film processing

● Thin film and copper foil cutting

● Wood and acrylic engraving

● Lettering and marking applications

Product Details

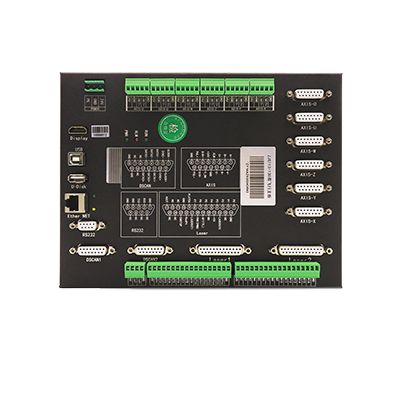

● Control System: Supports 3-axis motion with high-speed processing capabilities

● Laser Compatibility: RF laser, CO₂ glass tube laser, fiber laser

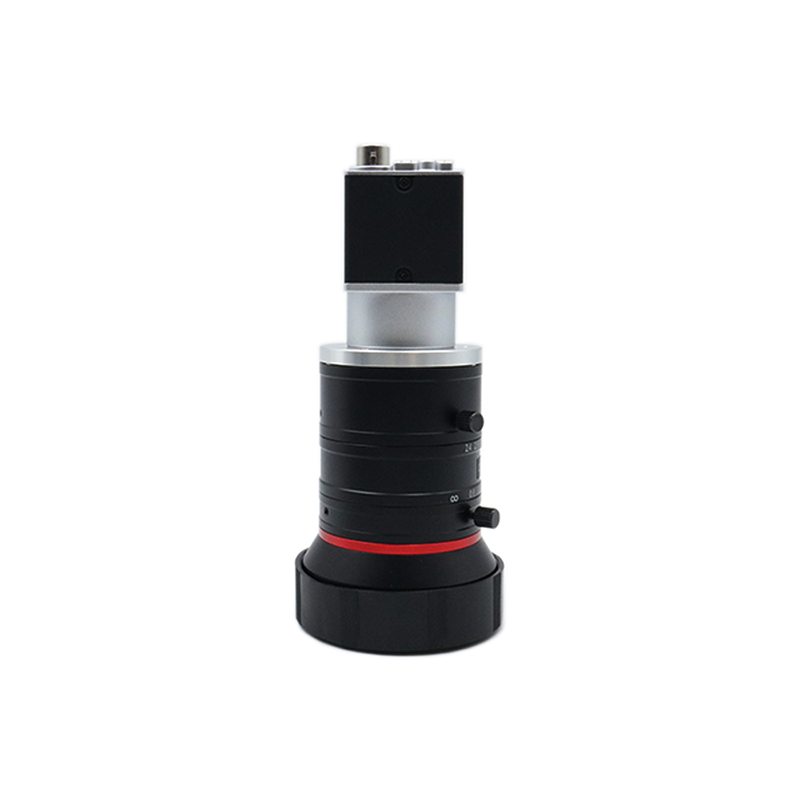

● Camera：1.3 MP industrial camera

● Visual Accuracy: Sub-pixel positioning, galvanometer correction

● Advanced Features:Multi‑layer processing, template deformation matching

● Precision: 0.005mm resolution magnetic grid ruler + closed-loop galvanometer control

● Data Interface: USB, Ethernet, and remote access

● Intelligent Features: Auto focus, resume on power loss, automatic visual correction

● Automation: Supports auto-feeding for continuous production environments

● Machine frame: The structure that supports the main components of the laser system, including the motion axes.

● X and Y axes of the machine frame: The horizontal and vertical movement axes of the machine frame.

● Galvanometer system: A system using galvanometer-driven mirrors to precisely direct the laser beam.

● X and Y axes of the galvanometer system: The axes of the galvanometer mirrors, which direct the laser beam.

Product Advantage

● Industry first.

● High precision, fast speed, 5-10 times the traditional cutting.

● The galvanometer corrects automatically.

● Strong algorithm

● Outstanding quality

● Plentiful practical data
