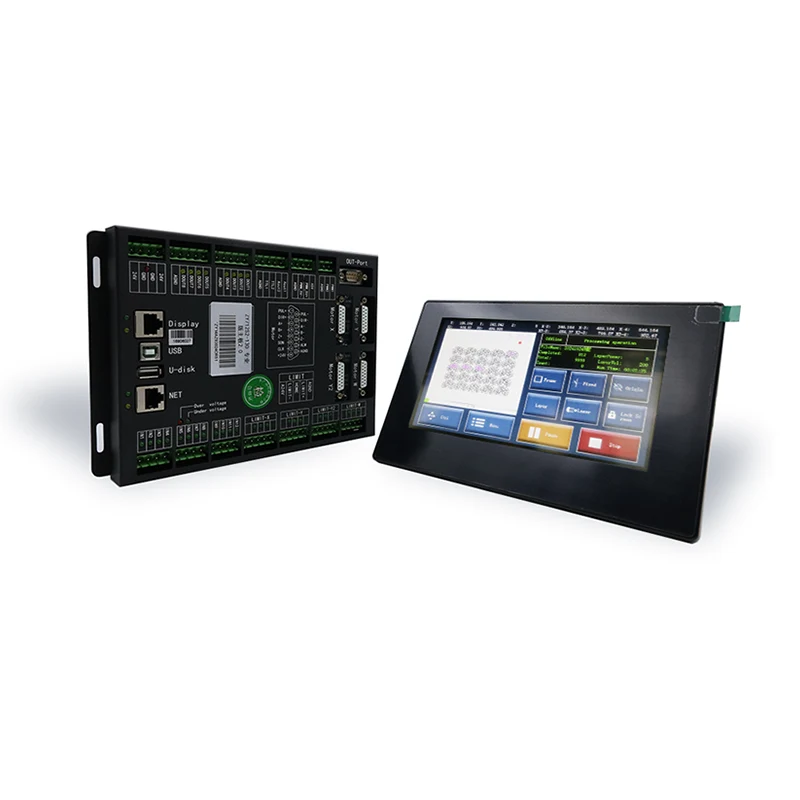

CCD Visual Laser Control System

Model: ZY712S2-130

CCD Visual Laser Control System supports multi-template recognition and allows the selection of cameras with different resolutions to suit various material processing needs, offering a flexible and adaptable solution. It also supports intelligent material feeding, automatic Z-axis focusing, and power-off resume cutting, ensuring both process stability and high operational efficiency.

With its powerful visual matching algorithm and precise motion control architecture, the ZY712S2-130 delivers consistent, high-quality results in demanding laser cutting applications.

Product Parameter (Specification)

Product Feature And Application

Key Features:

● High-precision visual positioning function, sub-pixel accuracy.

● Support pitch compensation function.

● Support closed loop, spot compensation, arbitrary position adjustment of laser power curve, a variety of light control functions and modes.

● 4-axis control, maximum pulse output frequency up to 4M, support input and output PLC function.

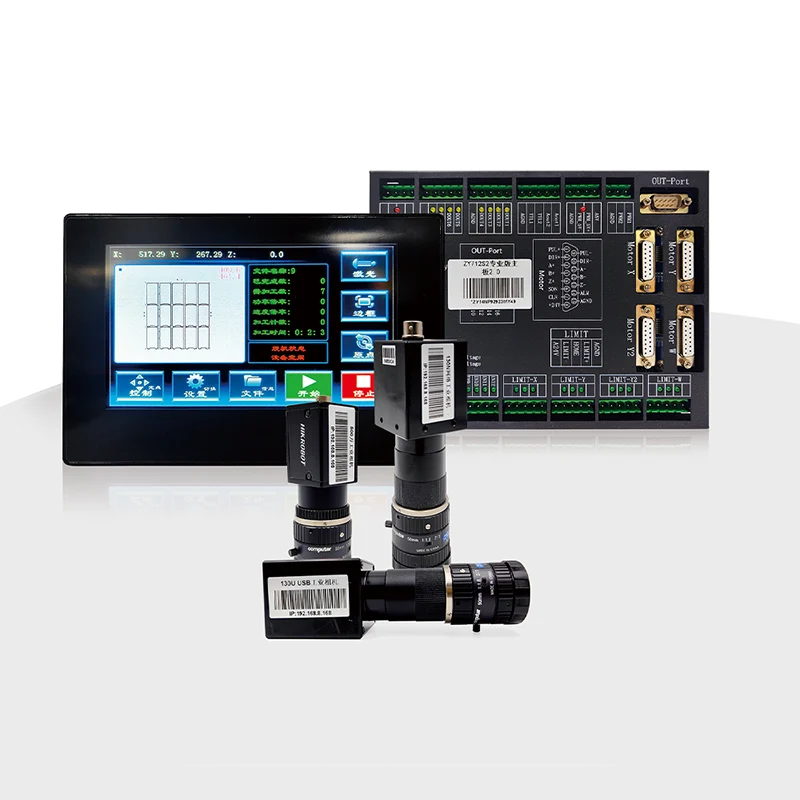

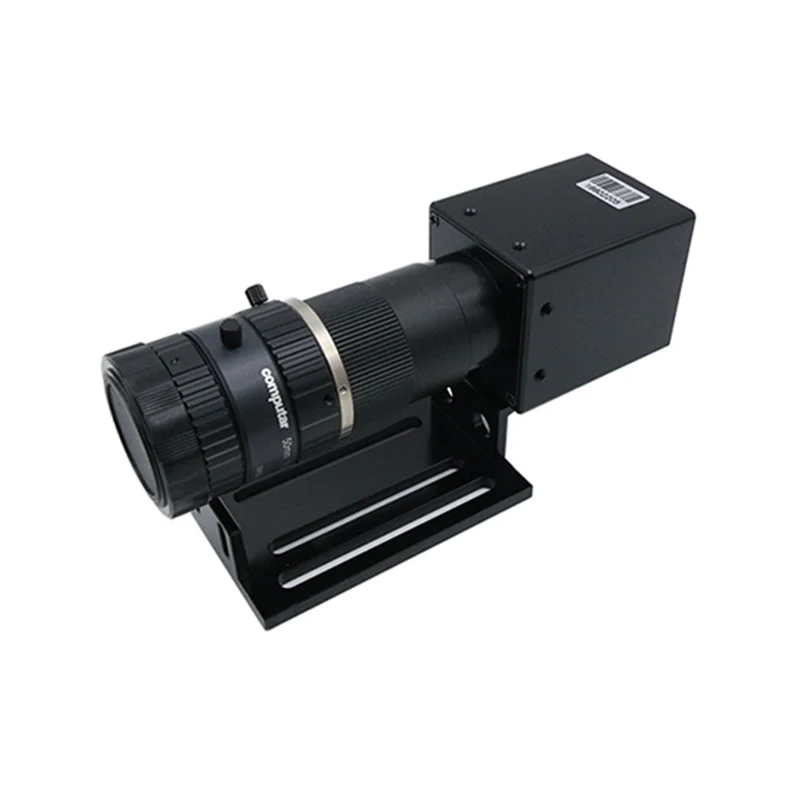

● Different cameras can be selected according to different processing materials, such as 360,000, 1.3 million, 5 million and above pixel industrial cameras, powerful visual matching algorithm.

● Supports multiple template identification.

● Support contour template, mark cutting function, can be applied to cutting large graphics, can process any graphics.

● Support deformation matching and scale scaling.

● Used in mobile phone protective film,mobile phone cover plate, silicon chip, touch screen, plastic, wood, leather, PU leather, paper, fiber and composite materials and other non-metallic materials.

Application Fields:

● Screen protector

● Film

● Fibre

● Silicon wafer

● Ink screen

● Static cloth

● Lens film

● Touch screen

Product Details

● High-Precision Visual Positioning：Equipped with industrial cameras, the system achieves sub-pixel level accuracy for precise recognition and alignment.

● Multi-Template Recognition：Supports multiple template matching and identification for complex batch processing.

● Advanced Compensation Functions:Includes pitch compensation, spot compensation, deformation matching, and scale scaling to ensure dimensional accuracy in all conditions.

● Versatile Motion Control:Supports up to 3-axis control, with a maximum pulse output frequency of 4 MHz.

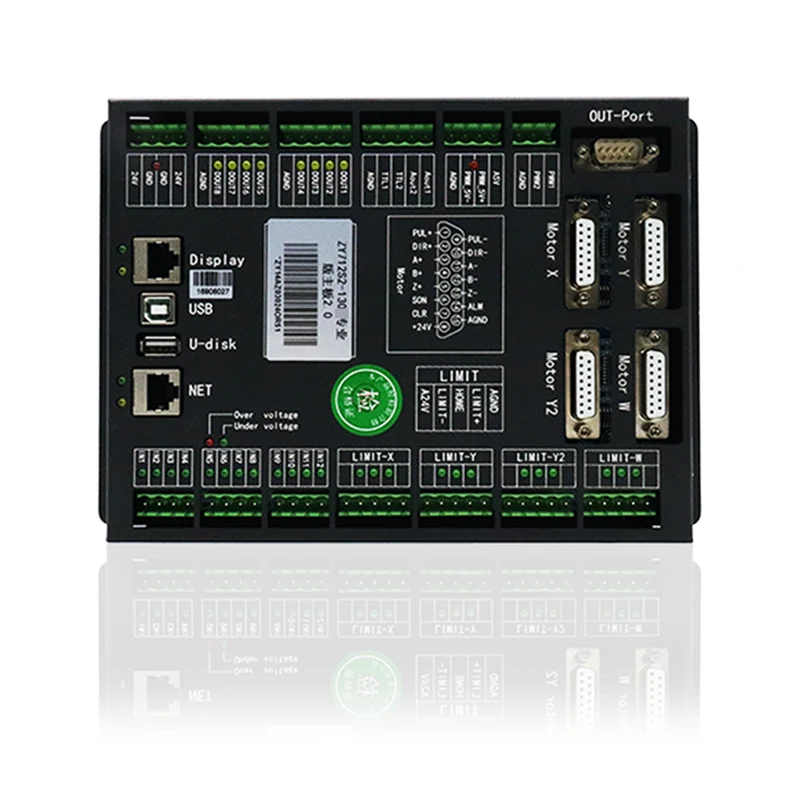

● Extensive I/O Support:16 general output ports and 12 input ports enable PLC connectivity and diverse automation integration.

● Efficient Data Handling:Offers 128MB of onboard disk space and supports both network communication and U disk for data transmission.

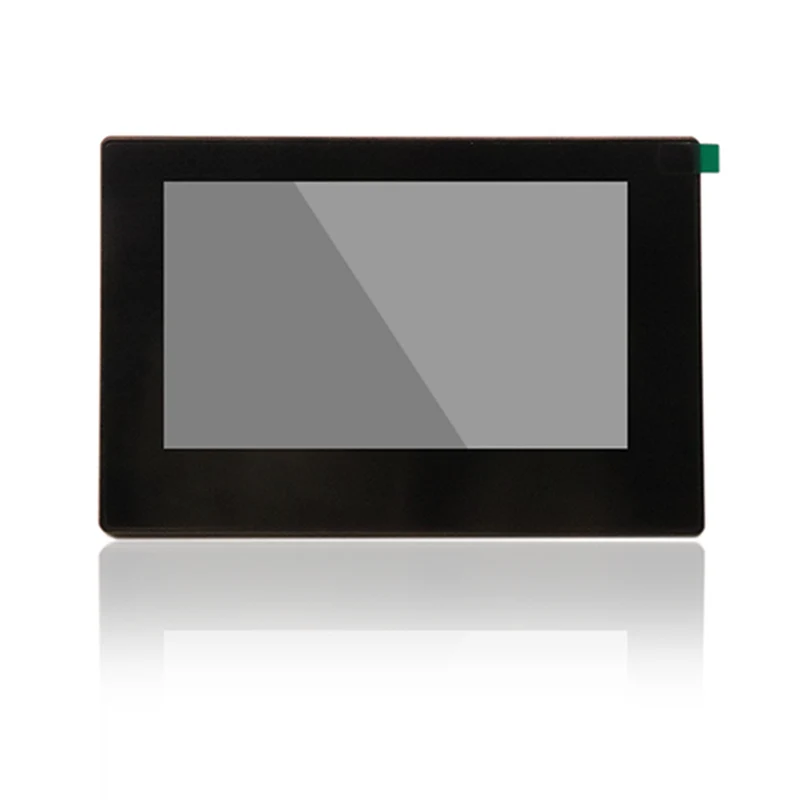

● Touchscreen Interface:A 7-inch touchscreen provides an intuitive interface for real-time control and parameter adjustment.

Product Advantage

● Stable performance

● Upport profile template

● Support deformation matching

● scale scaling

● Fast move

● High efficiency

● Strong algorithm

● Outstanding quality

● Plentiful practical data

Deliver,Shipping And Serving

Delivery

The standard delivery time is within 30 days after order confirmation and receipt of advance payment. Actual lead time may vary depending on order quantity and customization requirements.

Shipping

We offer flexible shipping options based on customer preferences, including international express delivery and ocean freight.

If the customer has their own freight forwarder, we are happy to coordinate directly with them.

If not, we can arrange shipping under CFR (Cost and Freight) or CIF (Cost, Insurance, and Freight) terms, ensuring a smooth and cost-effective delivery process.

Serving

Our company is committed to providing customers with high-quality products and professional technical services.

We offer pre-sale consultation, including product recommendation and technical guidance.

Our after-sales support includes installation advice, remote troubleshooting, and technical Q&A.

Timely communication and problem-solving are always our priorities to ensure customer satisfaction.

FAQ

How to Place an Order?

To place an order, please send the order details to our sales team via email. The information should include the product model, quantity, and consignee’s contact details, such as full address, telephone number, fax number, email address, and notification party (if applicable).

Our sales representative will contact you within one working day to confirm the order and provide further assistance.

What Are the Shipping Options?

Air Freight:

Fast and suitable for urgent orders or time-sensitive deliveries. However, it is relatively costly.

For laser controllers or similar products containing electronic components, please note that airlines may impose restrictions, such as limitations on lithium batteries, especially if the controller includes a built-in battery for backup.

Sea Freight:

A more economical option for bulk shipments. However, it requires a longer transit time.

During ocean transportation, the equipment may be exposed to temperature variations, humidity, and salt spray, so adequate protective packaging is necessary to ensure product safety.

International Express Courier:

Customers can either have the shipment arranged by the seller or provide their own courier account for booking and pickup.

How Is After-Sales Technical Support Provided?

After-sales support is primarily provided remotely via internet-based communication. Customers can contact us via email or instant messaging platforms for technical consultation and troubleshooting assistance.

For software-related issues, we can provide support through remote desktop tools to help resolve problems efficiently.

Additionally, we can establish overseas service centers or cooperate with local agents to offer on-site repair services and spare parts replacement.

Each product package includes a detailed user manual and troubleshooting guide, covering frequently asked questions, basic solutions, and technical support contact information.

Are you a trading company or a manufacturer?

We are original manufacturer,with a strong R & D team, the most professional product development technology, as well as the most advanced machinery and equipment.

How many years have your company made this kind of equipment?

Almost 14 years, and most our management and employees have been in the industry more than 20 years.

If OEM is acceptable?

Yes, OEM and customized product are welcome.

In the field of customer customized services, our company is equipped with a professional R & D team, the team members have deep industry knowledge and rich experience in product design. It not only includes the appearance design of the product, internal function module configuration optimization, but also covers the development of user-friendly software operation interface and other aspects. Through our OEM/ODM services, you can bring new products to market in a more efficient way, save a lot of research and development time and cost, and seize the opportunity in the fierce market competition.

Will you attend the fair to show your products?

Yes

How can I to be your agent in my country?

Welcome to be our agent, directly message here or email our sales team to get more details.

Do you have detailed and professional installation manual?

Yes

How long is your delivery time?

We used to have stock available, lead time can be just 1 to 3 business days after your payment done and arrived to our bank account.

Can I only buy some spare parts from you?

Yes

Can you design the equipment according to our size?

Yes.
