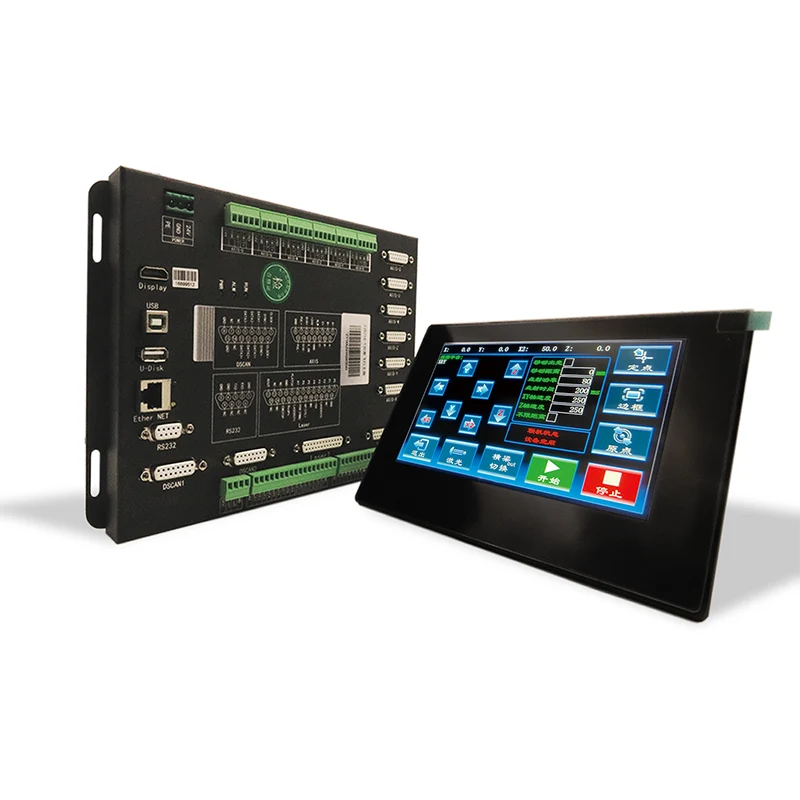

Galvo Laser Control System

Model: ZJS716

● Efficient visual recognition and precise positioning

● Ultra-high precision and fast processing (5-10 times faster than traditional cutting)

● Automatic switching between cutting and engraving

● Galvanometer self-check and intelligent correction

● Multi-axis linkage precise control

● Stable frame design and precise frame movement

● High-speed galvanometer system

● Precise galvanometer adjustment

● All-round adaptation to industrial needs

1.Break through the limitations of traditional equipment: Marking and cutting in one.

2.Multi-laser compatibility: Support RF lasers, CO2 glass tubes, fiber lasers, etc.

3.Intelligent function: Support multi-head synchronous processing, support cutting conversion, greatly reduce manual intervention, improve production continuity.

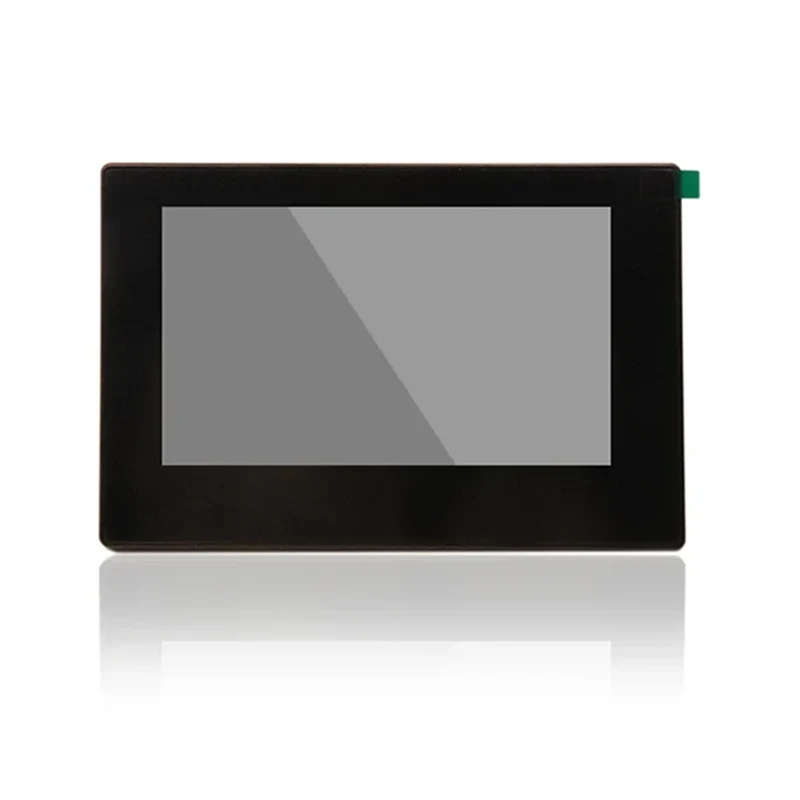

4.Seven-inch touch screen: Intuitive operation interface, graphics import, parameter adjustment is completed with one click, reducing learning costs.

5.Widely used:Clothing/Fabric/Textile, leather,shoe, glass, stainless Steel, 3C, electronic accessories, copper film and other industries

Product Parameter (Specification)

Product Feature And Application

Key Features:

● Supports offline working mode with 16G internal storage

● Combines cutting and engraving functions, capable of switching between traditional laser head and galvanometer processing via layer-based mode selection

● High-speed processing with continuous light, suitable for large-area tasks

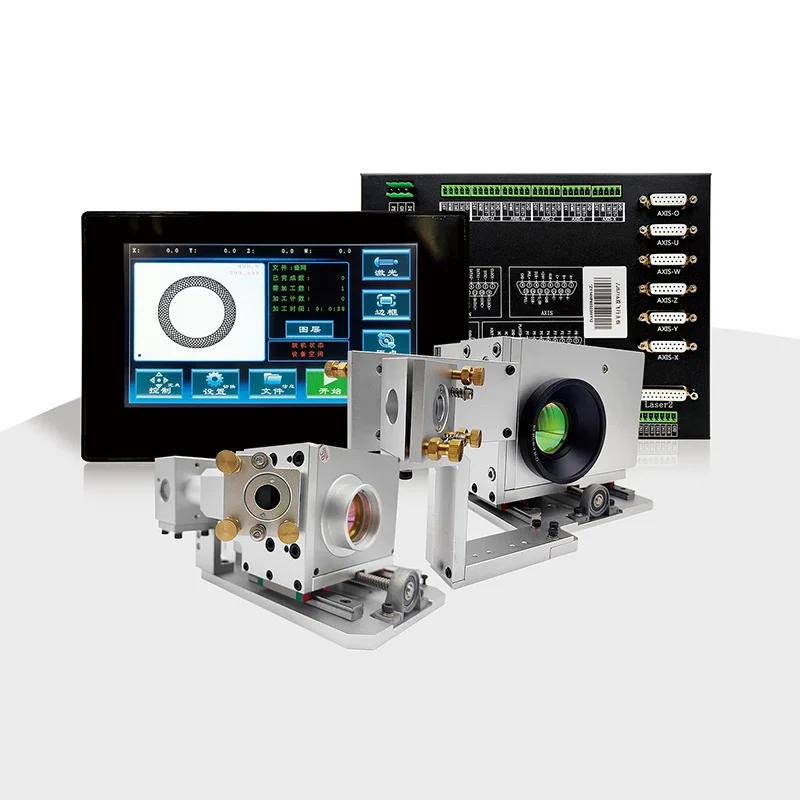

● XY frame + galvanometer dual-axis linkage enables full completion of large graphics in a single process

● Equipped with magnetic grid ruler, precision up to 0.005mm

● Closed-loop galvanometer control for enhanced accuracy and cutting quality

● Supports automatic production with a feeding device

● Multiple communication options: USB, network, and remote control

● High-precision camera enables automatic galvanometer correction

● 6-axis control with pulse output frequency up to 4 MHz

Application Fields:

● Cloth/Textile/Fabric cutting

● Leather processing

● Crafts and artwork engraving

● Glass engraving

● Steel mesh and stencil cutting

● Mobile phone screen protector and film processing

● Thin film and copper foil cutting

● Wood and acrylic engraving

● Lettering and marking applications

Product Details

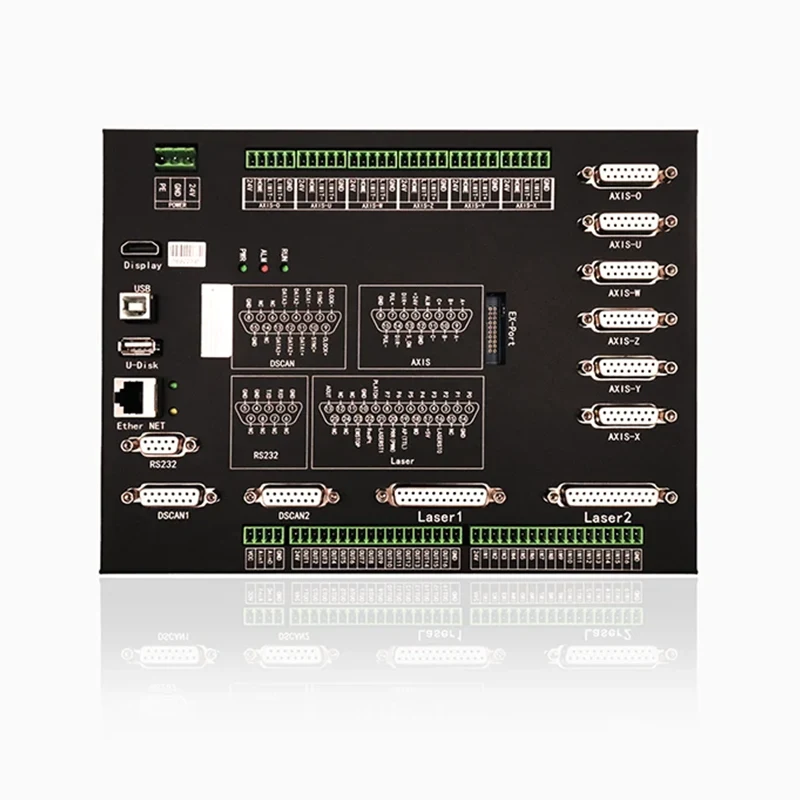

● Control System: The Galvo Laser Control System supports 6-axis motion with high-speed processing capabilities.

● Laser Compatibility: RF laser, CO₂ glass tube laser, fiber laser

● Precision: 0.005mm resolution magnetic grid ruler + closed-loop galvanometer control

● Processing Modes: Offline, visual online, multi-head sync, rotary engraving

● Data Interface: USB, Ethernet, and remote access

● Intelligent Features: Auto focus, resume on power loss, automatic visual correction

● Automation: Supports auto-feeding for continuous production environments

● Machine frame: The structure that supports the main components of the laser system, including the motion axes.

● X and Y axes of the machine frame: The horizontal and vertical movement axes of the machine frame.

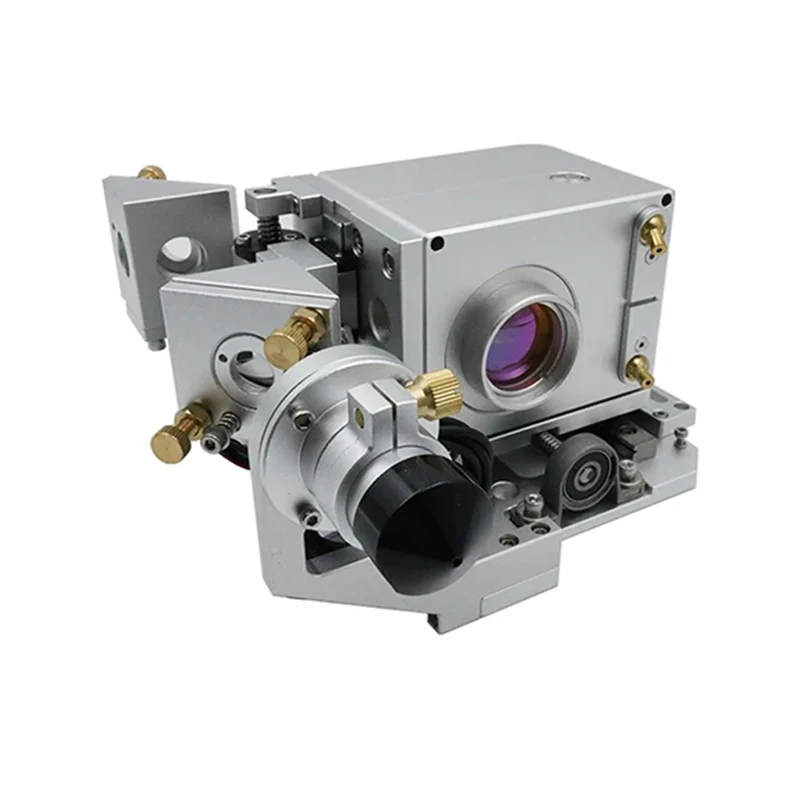

● Galvanometer system: A system using galvanometer-driven mirrors to precisely direct the laser beam.

● X and Y axes of the galvanometer system: The axes of the galvanometer mirrors, which direct the laser beam.

● Coordination of control: The process of synchronizing the movements of multiple axes for precise operation.

● Dual-flight: Refers to a multi-axis linkage system in the laser industry.

● Multi-axis linkage system: A system where multiple axes are coordinated for precise control in laser processing

Product Advantage

● Industry first.

● High precision, fast speed, 5-10 times the traditional cutting.

● Support engraving and cutting one, cutting engraving automatic conversion.

● The galvanometer corrects automatically.

● Strong algorithm

● Outstanding quality

● Plentiful practical data

Deliver,Shipping And Serving

Delivery

The standard delivery time is within 30 days after order confirmation and receipt of advance payment. Actual lead time may vary depending on order quantity and customization requirements.

Shipping

We offer flexible shipping options based on customer preferences, including international express delivery and ocean freight.

If the customer has their own freight forwarder, we are happy to coordinate directly with them.

If not, we can arrange shipping under CFR (Cost and Freight) or CIF (Cost, Insurance, and Freight) terms, ensuring a smooth and cost-effective delivery process.

Serving

Our company is committed to providing customers with high-quality products and professional technical services.

We offer pre-sale consultation, including product recommendation and technical guidance.

Our after-sales support includes installation advice, remote troubleshooting, and technical Q&A.

Timely communication and problem-solving are always our priorities to ensure customer satisfaction.

FAQ

How to Place an Order?

To place an order, please send the order details to our sales team via email. The information should include the product model, quantity, and consignee’s contact details, such as full address, telephone number, fax number, email address, and notification party (if applicable).

Our sales representative will contact you within one working day to confirm the order and provide further assistance.

What Are the Shipping Options?

Air Freight:

Fast and suitable for urgent orders or time-sensitive deliveries. However, it is relatively costly.

For laser controllers or similar products containing electronic components, please note that airlines may impose restrictions, such as limitations on lithium batteries, especially if the controller includes a built-in battery for backup.

Sea Freight:

A more economical option for bulk shipments. However, it requires a longer transit time.

During ocean transportation, the equipment may be exposed to temperature variations, humidity, and salt spray, so adequate protective packaging is necessary to ensure product safety.

International Express Courier:

Customers can either have the shipment arranged by the seller or provide their own courier account for booking and pickup.

How Is After-Sales Technical Support Provided?

After-sales support is primarily provided remotely via internet-based communication. Customers can contact us via email or instant messaging platforms for technical consultation and troubleshooting assistance.

For software-related issues, we can provide support through remote desktop tools to help resolve problems efficiently.

Additionally, we can establish overseas service centers or cooperate with local agents to offer on-site repair services and spare parts replacement.

Each product package includes a detailed user manual and troubleshooting guide, covering frequently asked questions, basic solutions, and technical support contact information.

Are you a trading company or a manufacturer?

We are original manufacturer,with a strong R & D team, the most professional product development technology, as well as the most advanced machinery and equipment.

How many years have your company made this kind of equipment?

Almost 14 years, and most our management and employees have been in the industry more than 20 years.

If OEM is acceptable?

Yes, OEM and customized product are welcome.

In the field of customer customized services, our company is equipped with a professional R & D team, the team members have deep industry knowledge and rich experience in product design. It not only includes the appearance design of the product, internal function module configuration optimization, but also covers the development of user-friendly software operation interface and other aspects. Through our OEM/ODM services, you can bring new products to market in a more efficient way, save a lot of research and development time and cost, and seize the opportunity in the fierce market competition.

Will you attend the fair to show your products?

Yes

How can I to be your agent in my country?

Welcome to be our agent, directly message here or email our sales team to get more details.

Do you have detailed and professional installation manual?

Yes

How long is your delivery time?

We used to have stock available, lead time can be just 1 to 3 business days after your payment done and arrived to our bank account.

Can I only buy some spare parts from you?

Yes

Can you design the equipment according to our size?

Yes.
