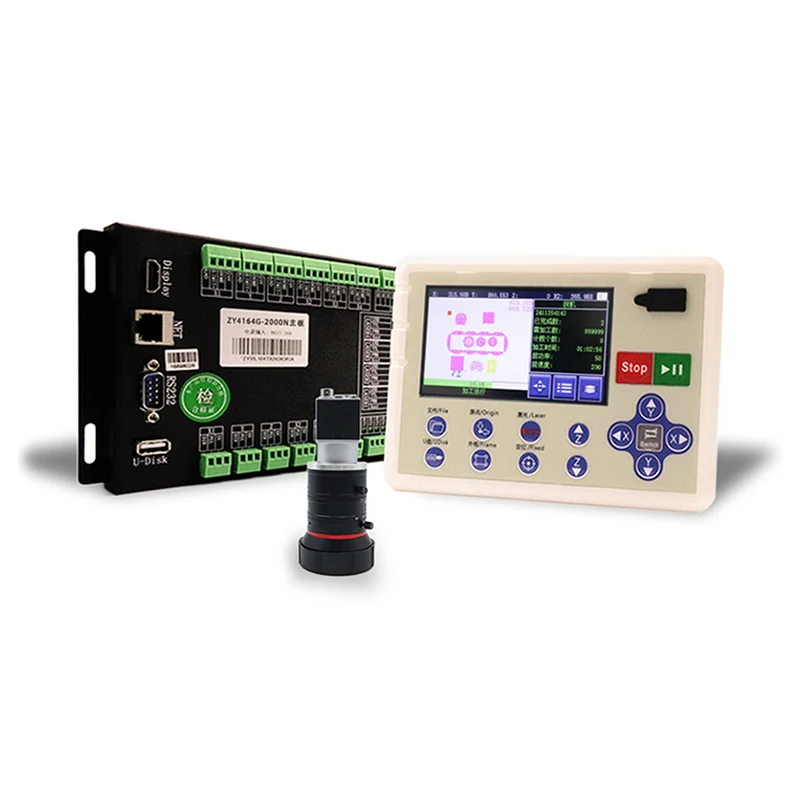

ZY4164G-2000 Panoramic Vision Laser Control Board For Clothing

Model: ZY4164G-2000

Equipped with a 20 megapixel industrial camera and a 4.3″ touchscreen, it integrates full‑field image recognition, intelligent feeding, and real‑time correction to ensure superior performance in complex cutting environments.

Product Parameter (Specification)

Product Feature And Application

Key Features:

● Accurately identifies complex shapes across large surfaces using spliced panoramic imaging and intelligent multi-template recognition.

● Supports deformation matching, image morphology, and sub-region matching for intricate part geometries.

● Incorporates YZ-synchronous intelligent feeding and automatic deviation correction for consistent cutting accuracy.

● Multiple modes including black-edge detection, center-line alignment, and lace tracing allow for precise position locking across diverse materials.

● Ideal for nonmetal material

Application Fields:

● Cloth/Textile/Fabric Fabrics（flags, Ma Mian Skirts, cultural and creative fabric products）

● Home textiles (e.g., bedding, curtains, decorative fabrics).

● Industrial textile processing (technical fabrics for specialized applications).

● Customized Labels and Nameplates

● Clothing and footwear labels/tags (woven, printed, or embossed).

● Apparel and Footwear Accessories

● Digital Printing Cutting (signage, banners, displays，art reproductions, souvenirs).

Product Details

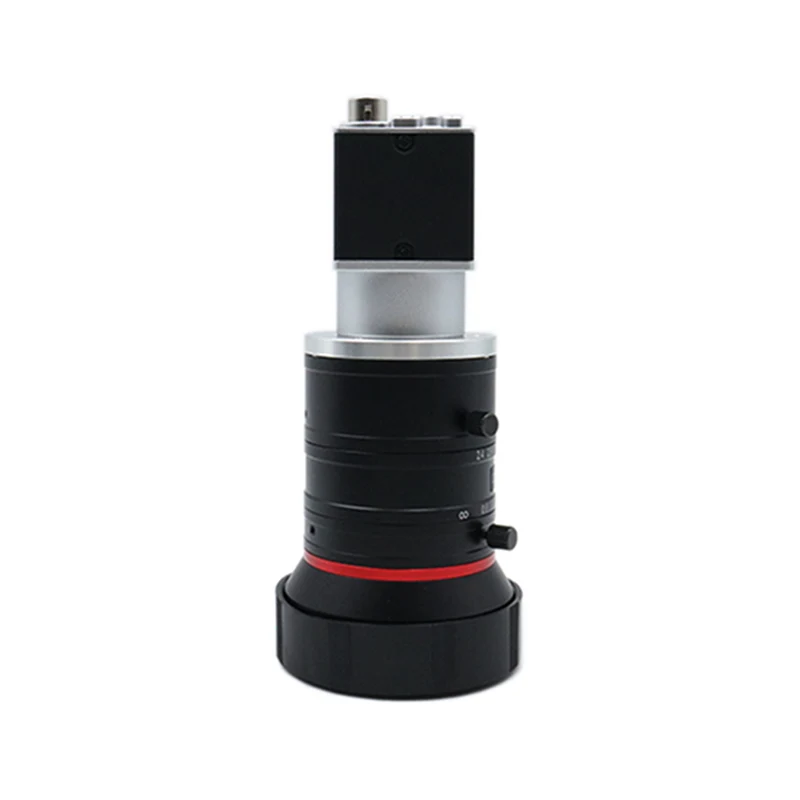

● Camera Resolution: 20 MP industrial camera

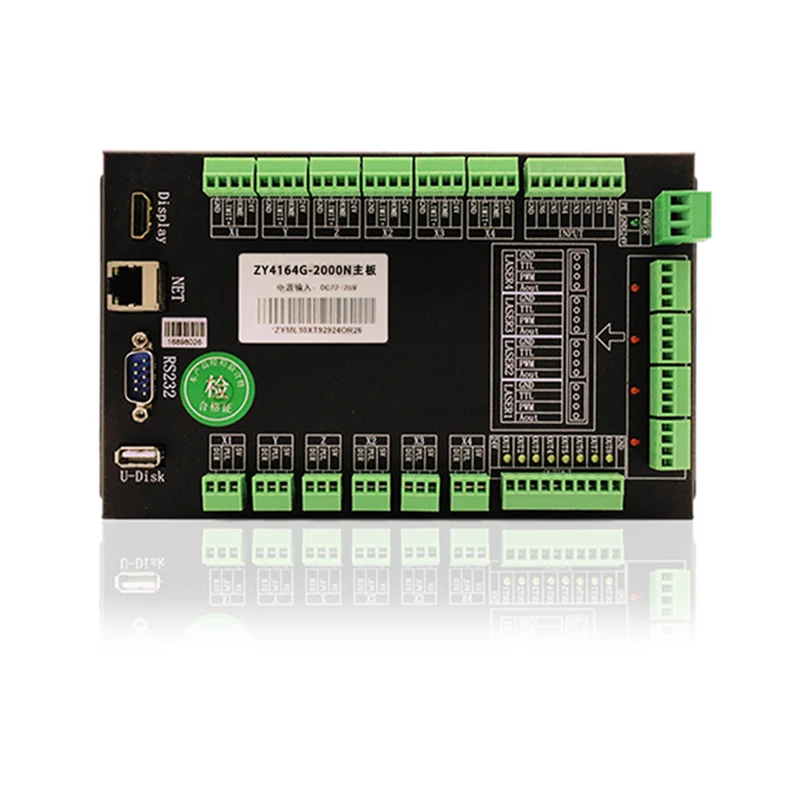

● Axes Controlled: 6‑axis (X1, X2,X3,X4,Y, Z)

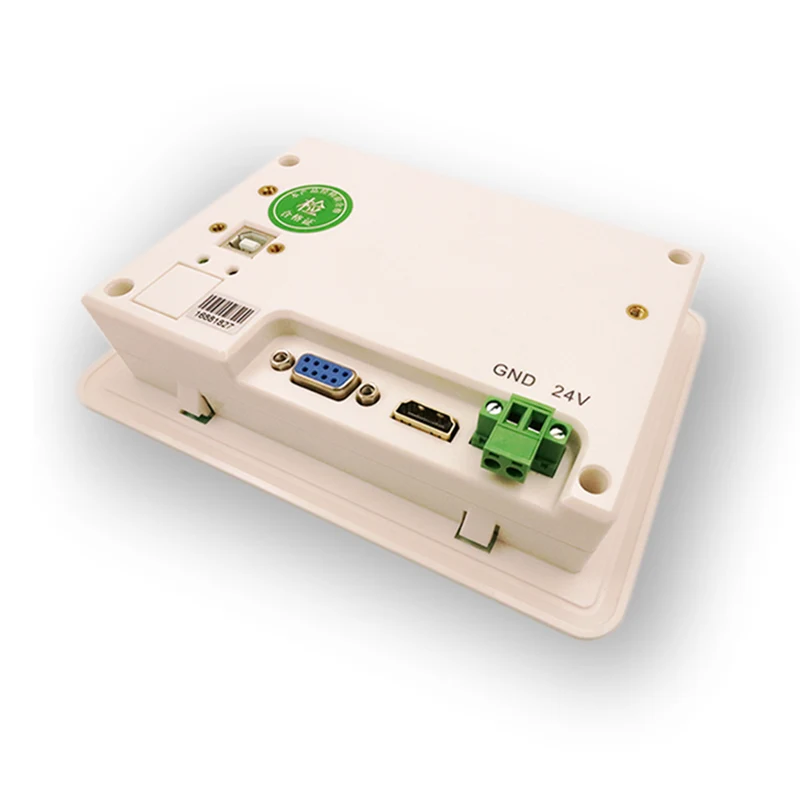

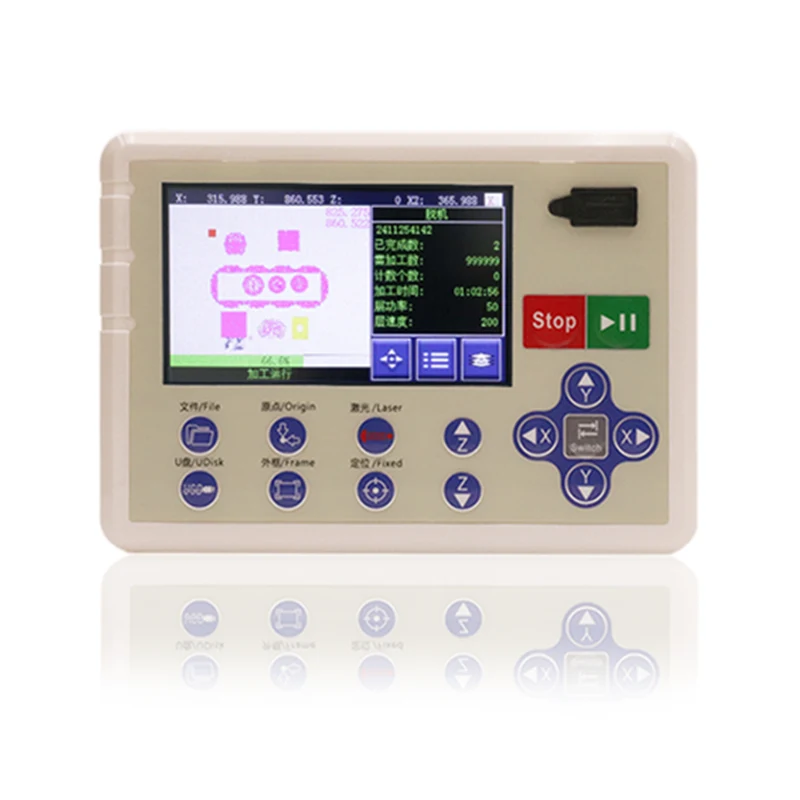

● Touchscreen HMI: 4.3″ LCD

● Image Processing : Multi‑template, image morphology, sub-region recognition

● Edge Detection Modes: Black‑edge, center‑line, lace, lace wave

● Feeding Modes: YZ synchronous, automatic feeding, deviation correction

● Resumption Function: Power-off resume, breakpoint continuation

● Optional Cameras：18–24 MP DSLR or 12–20 MP industrial

Product Advantage

● Stable performance

● High visual accuracy

● Seek edge, template two in one

● Supports template deformation matching

● Technology industry leader

● Fast move

● High efficiency

● Strong algorithm

● Outstanding quality

● Plentiful practical data

Deliver,Shipping And Serving

Delivery

The standard delivery time is within 30 days after order confirmation and receipt of advance payment. Actual lead time may vary depending on order quantity and customization requirements.

Shipping

We offer flexible shipping options based on customer preferences, including international express delivery and ocean freight.

If the customer has their own freight forwarder, we are happy to coordinate directly with them.

If not, we can arrange shipping under CFR (Cost and Freight) or CIF (Cost, Insurance, and Freight) terms, ensuring a smooth and cost-effective delivery process.

Serving

Our company is committed to providing customers with high-quality products and professional technical services.

We offer pre-sale consultation, including product recommendation and technical guidance.

Our after-sales support includes installation advice, remote troubleshooting, and technical Q&A.

Timely communication and problem-solving are always our priorities to ensure customer satisfaction.

FAQ

How to Place an Order?

To place an order, please send the order details to our sales team via email. The information should include the product model, quantity, and consignee’s contact details, such as full address, telephone number, fax number, email address, and notification party (if applicable).

Our sales representative will contact you within one working day to confirm the order and provide further assistance.

What Are the Shipping Options?

Air Freight:

Fast and suitable for urgent orders or time-sensitive deliveries. However, it is relatively costly.

For laser controllers or similar products containing electronic components, please note that airlines may impose restrictions, such as limitations on lithium batteries, especially if the controller includes a built-in battery for backup.

Sea Freight:

A more economical option for bulk shipments. However, it requires a longer transit time.

During ocean transportation, the equipment may be exposed to temperature variations, humidity, and salt spray, so adequate protective packaging is necessary to ensure product safety.

International Express Courier:

Customers can either have the shipment arranged by the seller or provide their own courier account for booking and pickup.

How Is After-Sales Technical Support Provided?

After-sales support is primarily provided remotely via internet-based communication. Customers can contact us via email or instant messaging platforms for technical consultation and troubleshooting assistance.

For software-related issues, we can provide support through remote desktop tools to help resolve problems efficiently.

Additionally, we can establish overseas service centers or cooperate with local agents to offer on-site repair services and spare parts replacement.

Each product package includes a detailed user manual and troubleshooting guide, covering frequently asked questions, basic solutions, and technical support contact information.

Are you a trading company or a manufacturer?

We are original manufacturer,with a strong R & D team, the most professional product development technology, as well as the most advanced machinery and equipment.

How many years have your company made this kind of equipment?

Almost 14 years, and most our management and employees have been in the industry more than 20 years.

If OEM is acceptable?

Yes, OEM and customized product are welcome.

In the field of customer customized services, our company is equipped with a professional R & D team, the team members have deep industry knowledge and rich experience in product design. It not only includes the appearance design of the product, internal function module configuration optimization, but also covers the development of user-friendly software operation interface and other aspects. Through our OEM/ODM services, you can bring new products to market in a more efficient way, save a lot of research and development time and cost, and seize the opportunity in the fierce market competition.

Will you attend the fair to show your products?

Yes

How can I to be your agent in my country?

Welcome to be our agent, directly message here or email our sales team to get more details.

Do you have detailed and professional installation manual?

Yes

How long is your delivery time?

We used to have stock available, lead time can be just 1 to 3 business days after your payment done and arrived to our bank account.

Can I only buy some spare parts from you?

Yes

Can you design the equipment according to our size?

Yes.
