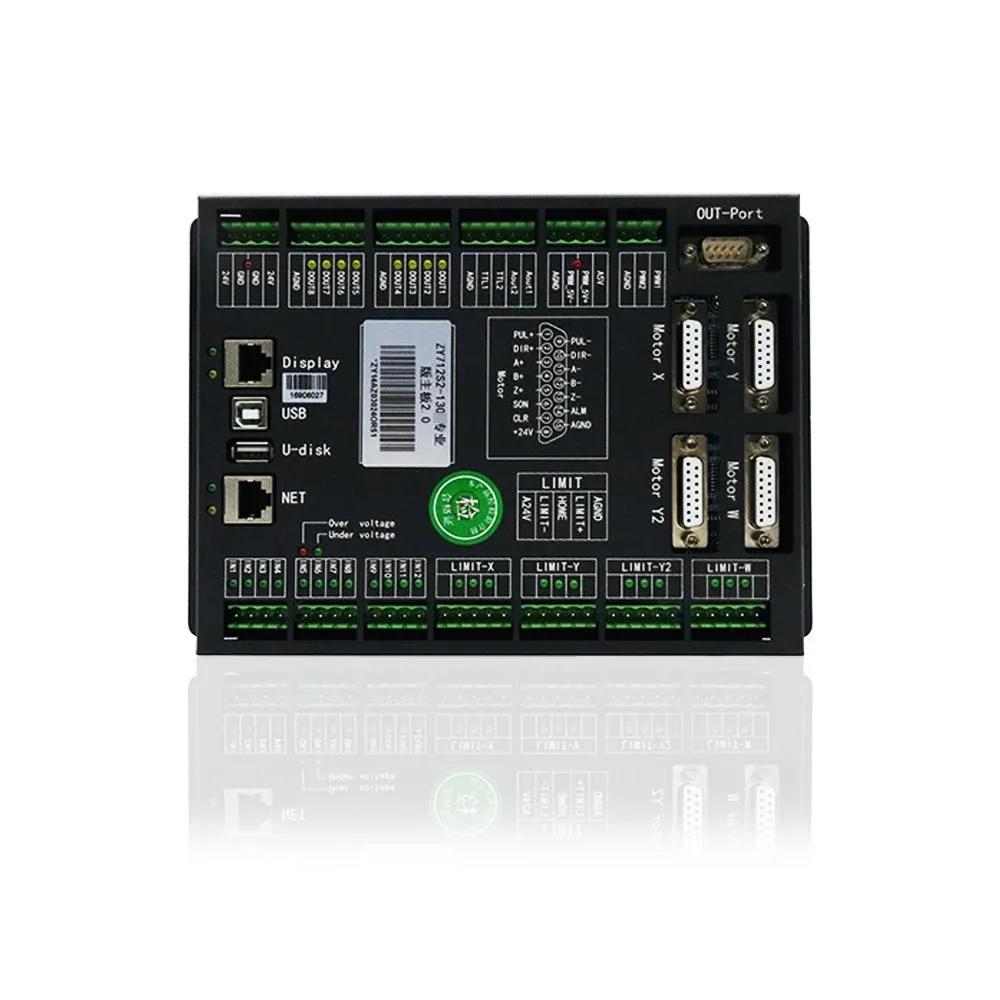

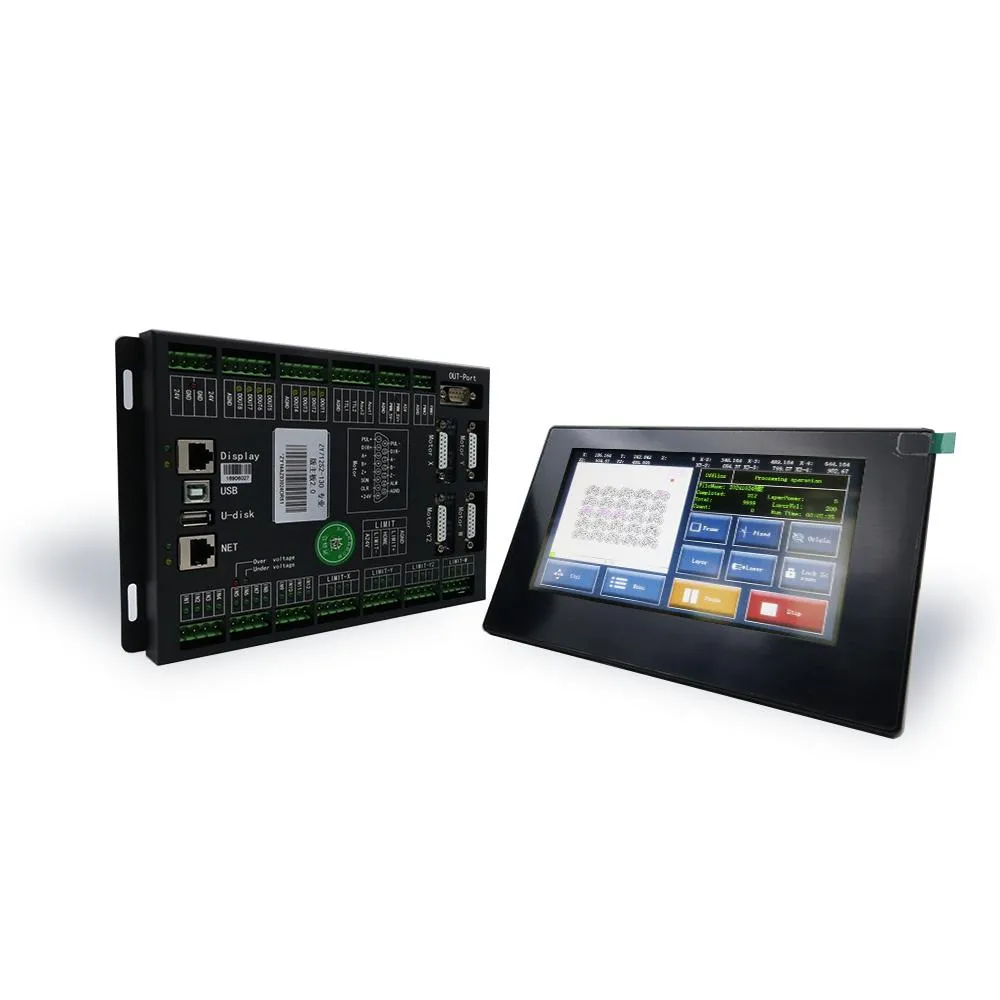

The ZY712S2-130 precision visual positioning laser cutting control system developed by Zhiyuan (Shenyan) CNC has become a benchmark solution for precision cutting of non-metallic materials with its sub-pixel visual positioning, multi-axis collaborative control and intelligent functions.

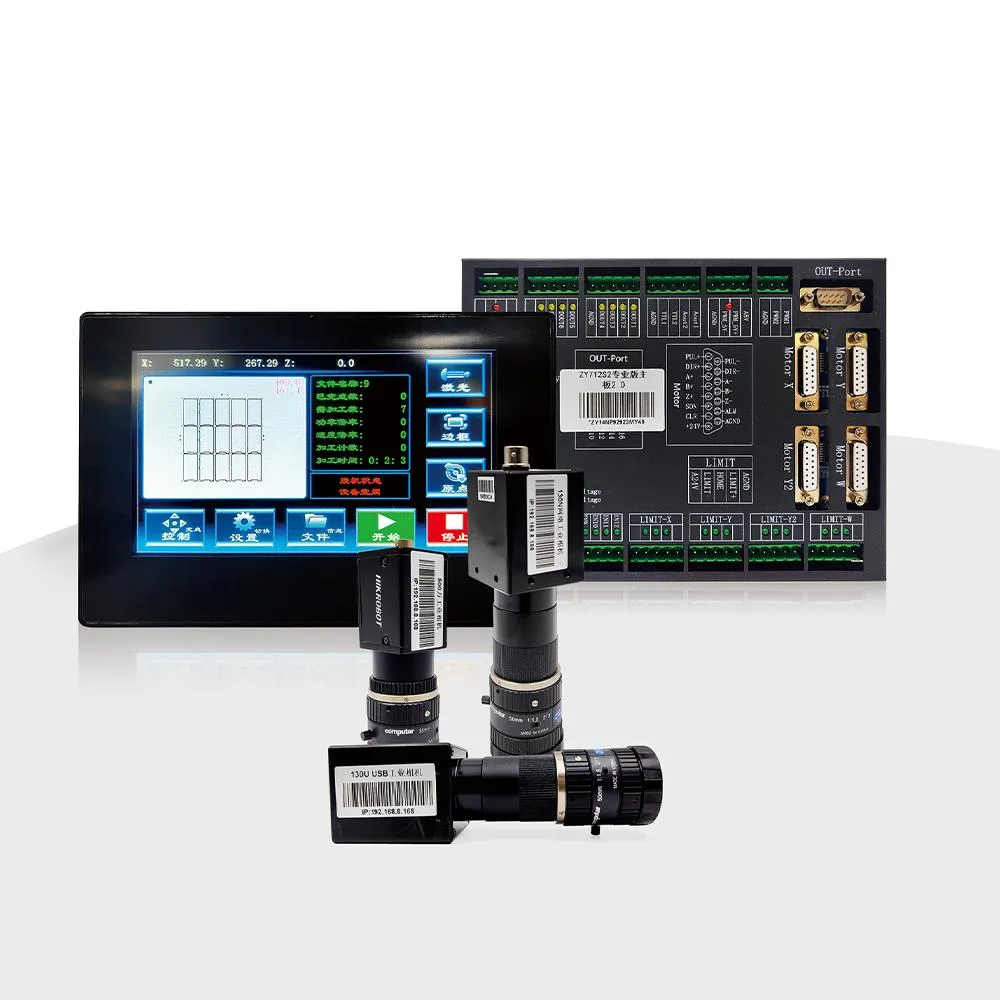

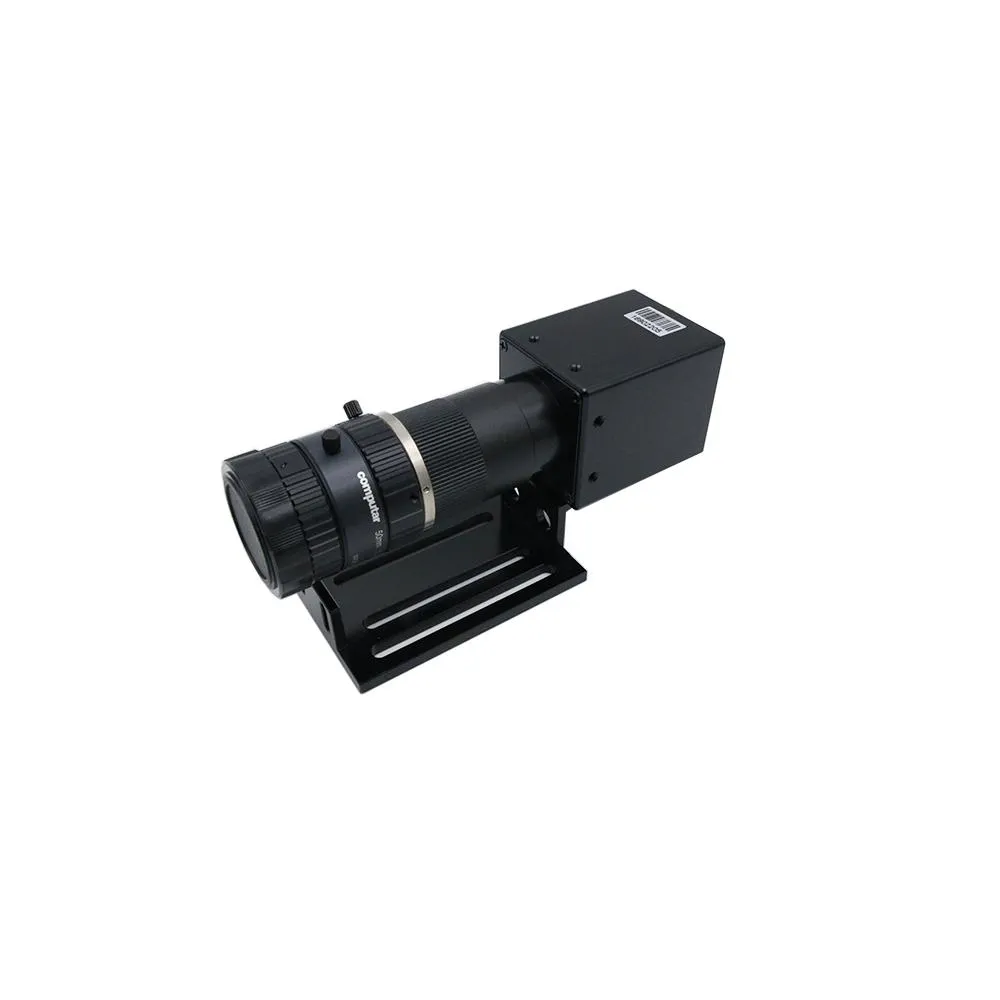

ZY712S2-130 is equipped with a 1.3 million pixel industrial camera (different cameras can be optionally equipped), combined with advanced visual matching algorithms, to achieve sub-pixel graphic recognition and positioning. Whether it is a silicon wafer with a micro-hole array or a complex and precise 3C electronic die-cutting material, the system can accurately capture the contour details to ensure that the cutting edge is burr-free and free of deviation.
Multi-template recognition and deformation matching functions further expand the applicable scenarios: support contour template and Mark point cutting, can process ultra-large format graphics; automatically adapt to material deformation, and achieve high compatibility processing through proportional scaling.
✅ High dynamic performance hardware
Supports multi-axis linkage control (X/Y/Z+rotation axis), with a maximum pulse output frequency of 4M, ensuring stability under high-speed motion.
✅ Laser process optimization
Spot compensation and multiple light control modes can adapt to different material characteristics.
Pitch compensation function: can eliminate positioning errors caused by the unevenness of components such as screws and gears. Suitable for mechanical equipment with long strokes and high-precision processing.
Closed-loop control: can automatically correct mechanical errors, such as position deviations caused by motor slip, belt loosening, load changes, etc.
✅ Intelligent production guarantee
Power-off continuous cutting: can be restored from the break point after an accidental power outage, significantly reducing the scrap rate.
Intelligent feeding: realize automated loading and unloading processes, effectively improving production efficiency.
Z-axis autofocus: focus adjustment is in place in one step, greatly simplifying the operation process.
✅ Precise identification and positioning
Advanced visual positioning technology can accurately identify and locate graphics with sub-pixel accuracy, ensuring the high-precision quality of cutting work.
✅ Intelligent process database
Built-in processing parameter templates for common materials, support one-click call; users can customize and store process plans to achieve fast switching of different products.
✅ Consumer electronics: micron-level processing of mobile phone protective films, touch screen covers, and films.
✅ Precision manufacturing: cutting of brittle materials such as silicon wafers and thin film circuits.
✅ Flexible materials: efficient molding of leather, PU leather, and fiber composite materials.
✅ Other industries: paper art engraving, wood precision hollowing, etc.
ZY712S2-130 deeply integrates visual positioning and laser control technology, providing a collaborative solution of "eyes" and "hands" for high-precision processing. Whether it is complex graphics or mass production, it can become the core booster of your production line with stable, precise and intelligent performance.
