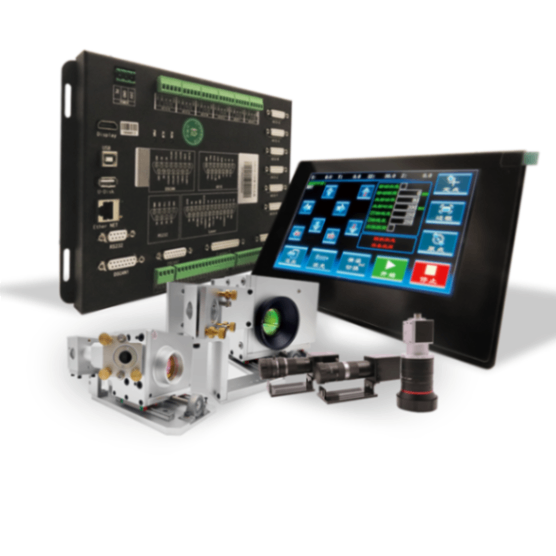

Galvo Fly cutting and marking Vision Controller

Model: ZJS716-130

• Efficient visual recognition and precise positioning
• Ultra-high precision and high-speed processing capability (5–10 times faster than traditional cutting)
• Capable of automatically switching between cutting and engraving functions
• Galvanometer self-check and intelligent correction
• Multi-axis linkage precise control
• Stable frame design and precise frame movement
• High-speed galvanometer system
• Precise galvanometer adjustment capability
• Able to meet multi-directional industrial requirements

1.Multi-template identification:The Galvo Fly cutting and marking Vision Controller can simultaneously support up to 100 different templates.

2.Breaking the limitations of traditional equipment: Unlike conventional devices limited to a single function, the system supports integrated marking and cutting.

3.Multi-laser compatibility: Support RF lasers, CO2 glass tubes, fiber lasers, etc.

4.Intelligent features: supports multi-head synchronous processing and cutting mode switching, effectively reducing manual intervention and improving production continuity and efficiency.

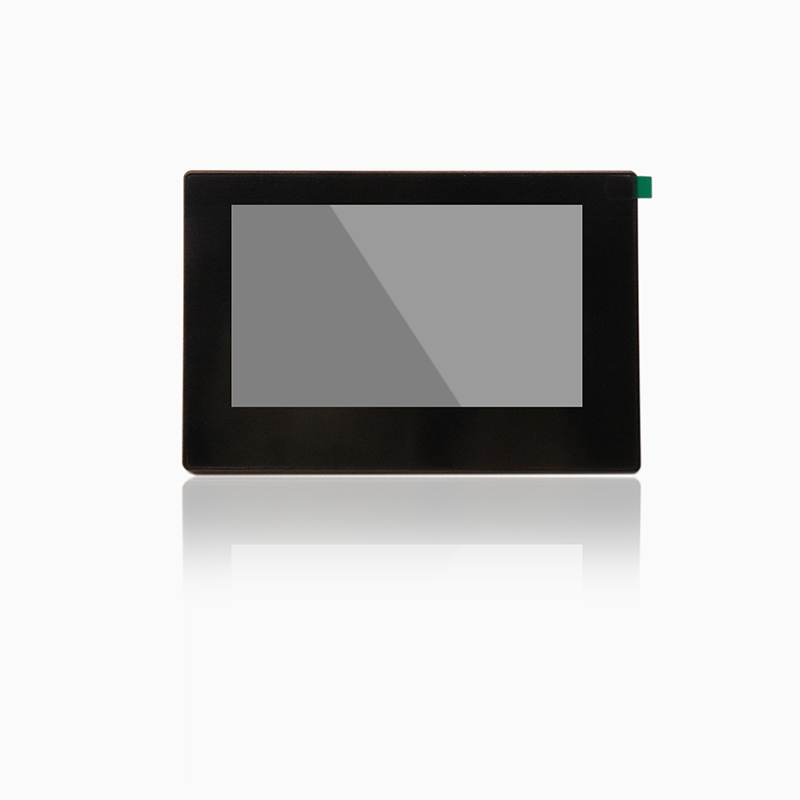

5.7-inch touch screen: The operation interface is intuitive, with one-click graphic import and parameter adjustment, which can greatly reduce manual learning costs.

6. Widely used:Clothing/Fabric/Textile, leather,shoe, glass, stainless Steel, 3C, electronic accessories, copper film and other industries.

Product Parameter (Specification)

Product Feature And Application

Key Features:

• The system coordinates the X-axis and Y-axis of the gantry system with the X-axis and Y-axis of the galvanometer, enabling precise multi-axis synchronization and meeting the requirements of high-precision cutting and engraving tasks.
• Ultra-clear vision and high-precision contour extraction capability, designed specifically for complex designs.
• Supports visual contour extraction, template alignment, and automatic path generation.
• Efficiently processes full work areas with galvanometer + XY dual‑flight linkage.
• Supports seamless switching between cutting and engraving modes and supports multi-layer processing.
• Possesses highly stable and precise beam control capability, capable of achieving clean edge effects.
• Includes features like auto focus, galvanometer correction, offline working mode, and continuous production with feeding integration.

Application Fields:

• Cloth/Textile/Fabric cutting
• Leather processing
• Crafts and artwork engraving
• Glass engraving
• Steel mesh and stencil cutting
• Mobile phone screen protector and film processing
• Thin film and copper foil cutting
• Wood and acrylic engraving
• Lettering and marking applications

Product Details

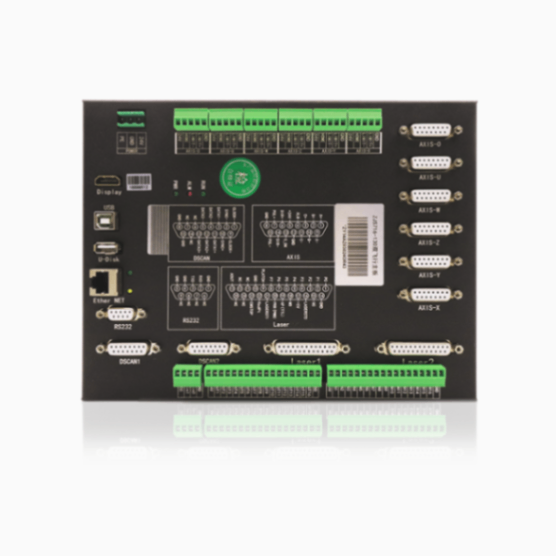

• Control System: Supports 6-axis motion with high-speed processing capabilities
• Laser Compatibility: RF laser, CO₂ glass tube laser, fiber laser
• Camera：20 MP industrial camera (supports up to 24 MP)
• Visual Accuracy: Sub-pixel positioning, galvanometer correction
• Advanced Features:Multi‑layer processing, template deformation matching
• Precision: 0.005mm resolution magnetic grid ruler + closed-loop galvanometer control
• Processing Modes: Offline, visual online, multi-head sync, rotary engraving
• Data Interface: USB, Ethernet, and remote access
• Intelligent Features: Auto focus, resume on power loss, automatic visual correction
• Automation: Equipped with an automatic feeding function, suitable for continuous production environments.
• Dual-flight: Refers to a multi-axis linkage system in the laser industry.
• Multi-axis linkage system: Refers to a laser control system in laser processing that allows multiple axes to work in coordination to achieve precise control.
• Machine frame: The structure that supports the main components of the laser system, including the motion axes.
• X and Y axes of the machine frame: The horizontal and vertical movement axes of the machine frame.

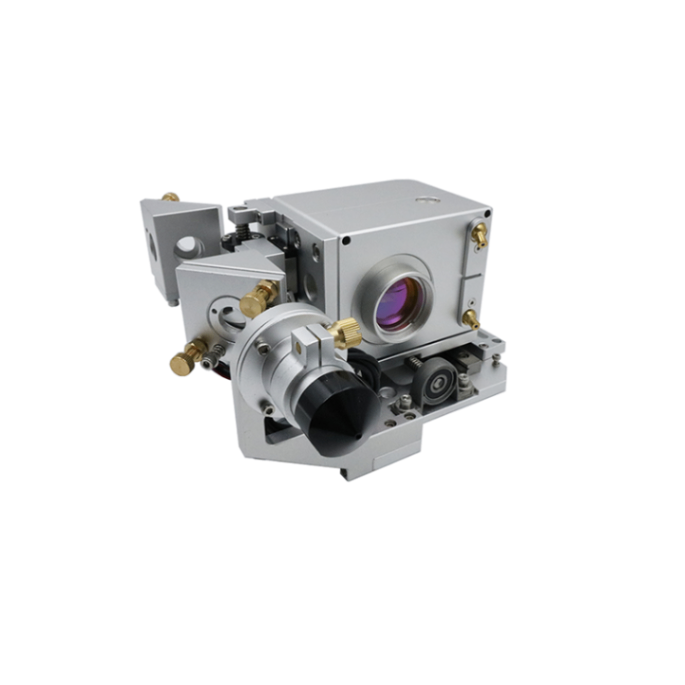

• Galvanometer system: A system using galvanometer-driven mirrors to precisely direct the laser beam.
• X and Y axes of the galvanometer system: It refers to the axis of the galvanometer mirror used to guide the laser beam.
• Coordination of control: Through the synchronized movement of multiple axes, precise operation is achieved.

Product Advantage

• Industry first.
• High precision, fast speed, 5-10 times the traditional cutting.
• Higher precision and higher speed, 5–10 times that of traditional cutting.
• Support engraving and cutting one, cutting engraving automatic conversion.
• The system integrates both engraving and cutting functions and supports automatic switching between engraving and cutting.
• The galvanometer corrects automatically.
• Strong algorithm
• Outstanding quality
• Plentiful practical data
