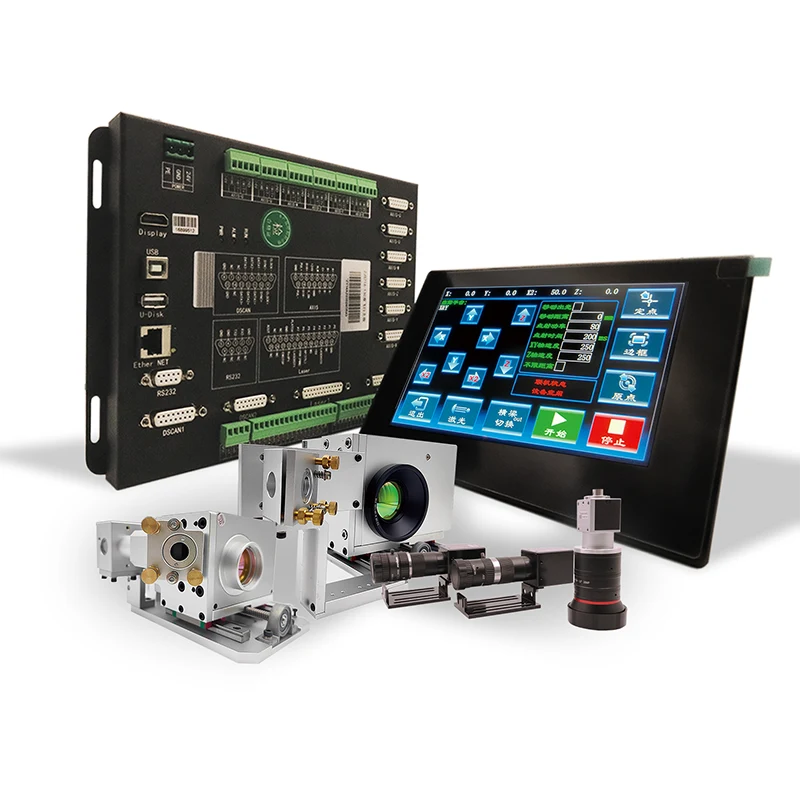

Multi-Axis Linkage laser Control System

Model: ZJS716-130

● Efficient large-field visual recognition & ultra-precise positioning

● Ultra-high precision paired with high-speed processing (5-10x faster than traditional cutting)

● Automatic switching between cutting and engraving modes

● Galvanometer self-inspection and intelligent dynamic calibration

● Multi-axis linkage for pinpoint control

● Stable high-rigidity frame design & accurate high-speed movement

● High-speed dual-galvanometer cooperative system

● Precise dual-galvanometer calibration

● Full compatibility with industrial large-format processing requirements

1. Multi-template recognition: Supports simultaneous identification of up to 100 distinct templates, enabling versatile application for batch processing of scattered workpieces.

2. Breakthrough traditional limitations: Integrates marking, cutting, and large-field vision positioning in one compact unit, streamlining workflow for high-efficiency production.

3. Multi-laser compatibility: Works seamlessly with RF lasers, CO₂ glass tubes, fiber lasers, and other mainstream laser types, adapting to diverse industrial processing needs.

4. Intelligent processing functions: Enables multi-head synchronous operation, on-demand cutting/engraving mode conversion, and large-area batch positioning—drastically reducing manual intervention while enhancing production continuity and efficiency.

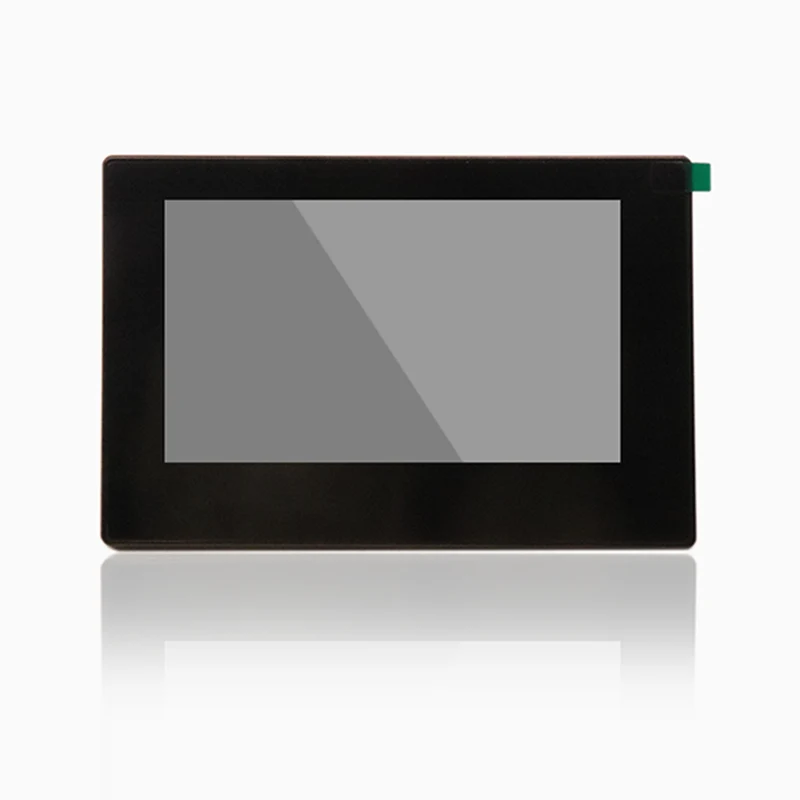

5. 7-inch touchscreen: Features an intuitive operation interface with one-click graphic import, parameter adjustment, and visual field calibration, minimizing learning curves for operators.

6. Multiple edge-finding modes: Supports black edge detection, center line detection, lace edge detection, and lace wave alignment, fully adapting to diverse material processing scenarios.

Product Parameter (Specification)

Product Feature And Application

Key Features:

● By coordinating the X and Y axes of the frame system with the X and Y axes of the galvanometer, the system achieves precise multi-axis synchronization for high-accuracy cutting and engraving tasks.

● Delivers ultra‑clear vision and high‑precision contour extraction for complex designs.

● Supports visual contour extraction, template alignment, and automatic path generation.

● Efficiently processes full work areas with galvanometer + XY dual‑flight linkage.

● Seamlessly switches between cutting and engraving modes, supporting multi-layer processing.

● Delivers highly stable and accurate beam control for clean edge finishes.

● Includes features like auto focus, galvanometer correction, offline working mode, and continuous production with feeding integration.

Application Fields:

● Cloth/Textile/Fabric cutting

● Leather processing

● Crafts and artwork engraving

● Glass engraving

● Steel mesh and stencil cutting

● Mobile phone screen protector and film processing

● Thin film and copper foil cutting

● Wood and acrylic engraving

● Lettering and marking applications

Product Details

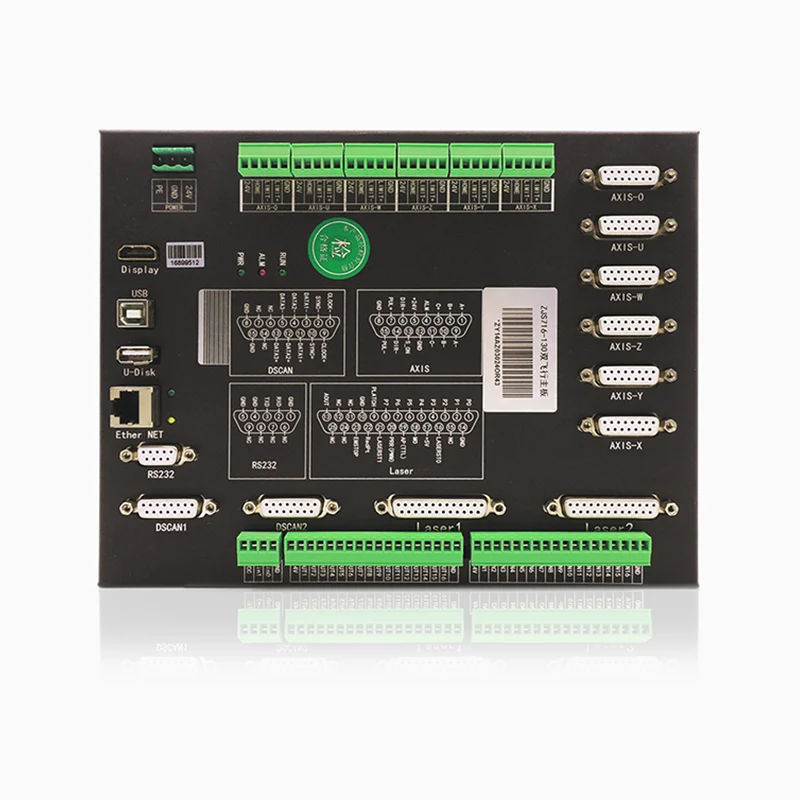

● Control System: Supports 6-axis motion with high-speed processing capabilities

● Laser Compatibility: RF laser, CO₂ glass tube laser, fiber laser

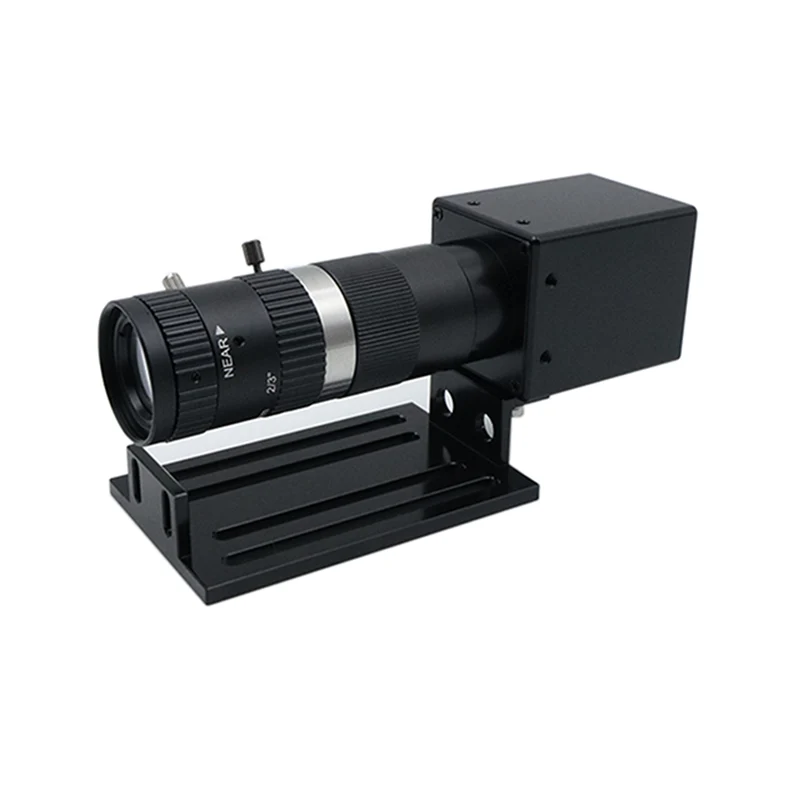

● Camera：20 MP industrial camera (supports up to 24 MP)

● Visual Accuracy: Sub-pixel positioning, galvanometer correction

● Advanced Features:Multi‑layer processing, template deformation matching

● Precision: 0.005mm resolution magnetic grid ruler + closed-loop galvanometer control

● Processing Modes: Offline, visual online, multi-head sync, rotary engraving

● Data Interface: USB, Ethernet, and remote access

● Intelligent Features: Auto focus, resume on power loss, automatic visual correction

● Automation: Supports auto-feeding for continuous production environments

● Dual-flight: Refers to a multi-axis linkage system in the laser industry.

● Multi-axis linkage system: A Multi-Axis Linkage laser Control System where multiple axes are coordinated for precise control in laser processing.

● Machine frame: The structure that supports the main components of the laser system, including the motion axes.

● X and Y axes of the machine frame: The horizontal and vertical movement axes of the machine frame.

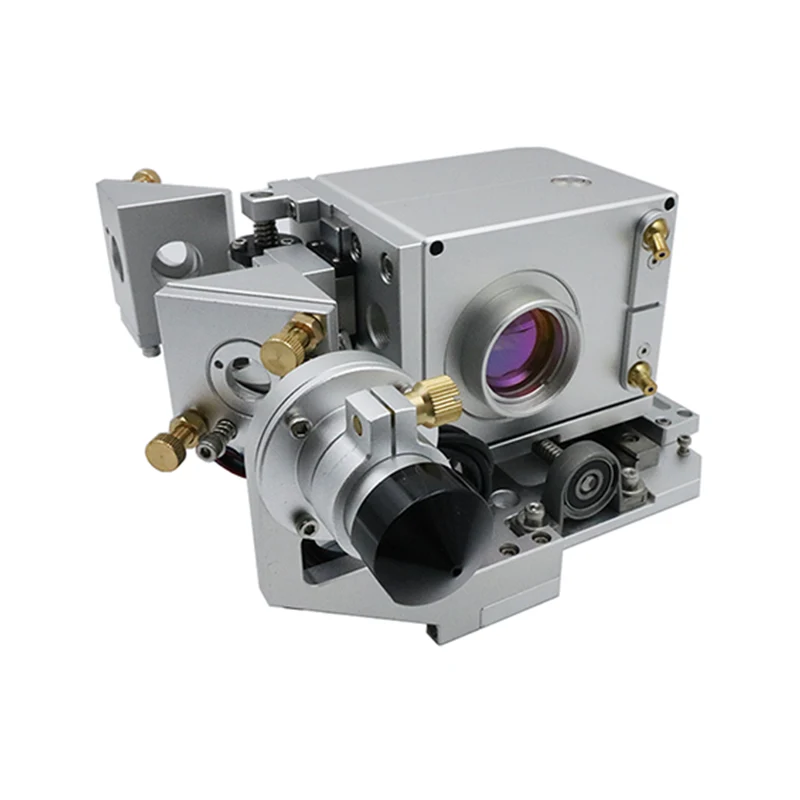

● Galvanometer system: A system using galvanometer-driven mirrors to precisely direct the laser beam.

● X and Y axes of the galvanometer system: The axes of the galvanometer mirrors, which direct the laser beam.

● Coordination of control: The process of synchronizing the movements of multiple axes for precise operation.

Product Advantage

● Industry first.

● High precision, fast speed, 5-10 times the traditional cutting.

● Support engraving and cutting one, cutting engraving automatic conversion.

● The galvanometer corrects automatically.

● Strong algorithm

● Outstanding quality

● Plentiful practical data
