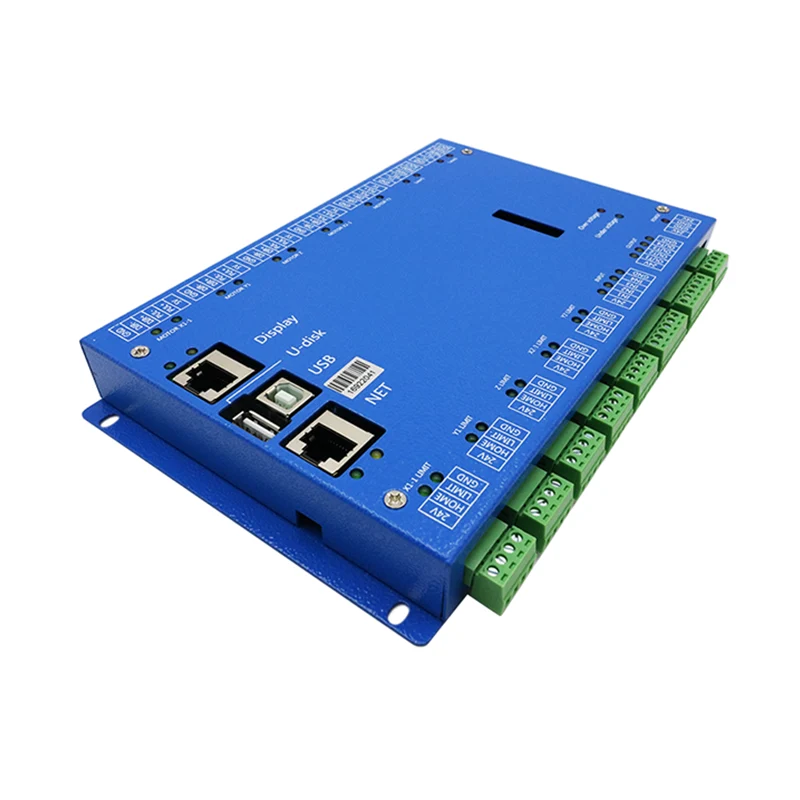

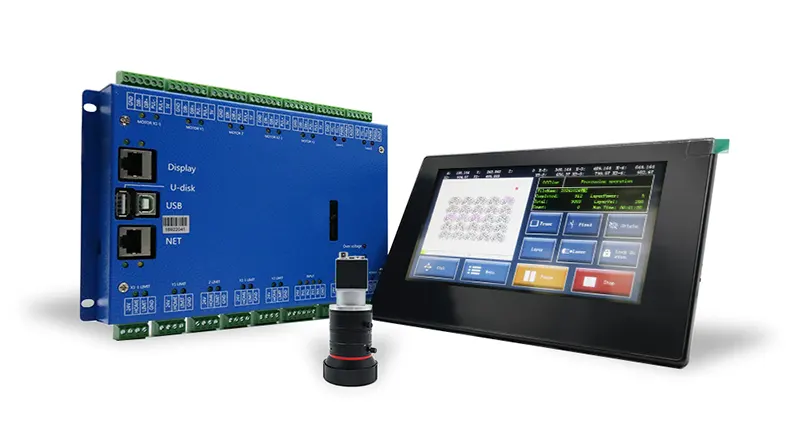

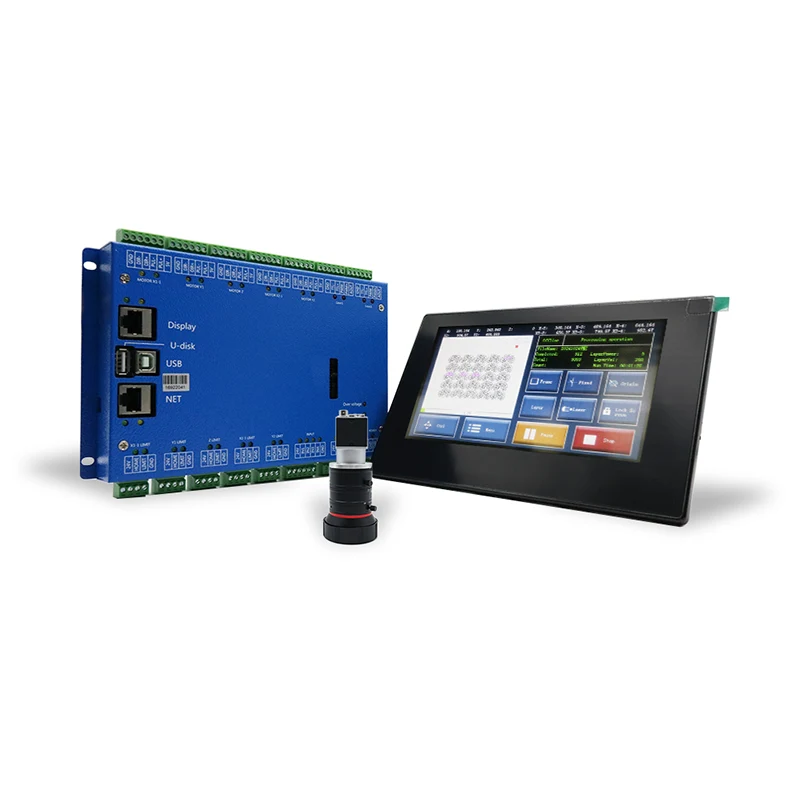

Model: ZY7050‑2000
Integrating advanced visual positioning technology, the system can automatically identify and extract graphic contours, perform intelligent auto-copying, and optimize part layout to significantly enhance production efficiency. It supports a broad range of graphic formats, ensuring compatibility with diverse design workflows.
Typesetting Laser Controller also features automatic defect avoidance, multi-template recognition, and graphic stitching capabilities, which greatly improve cutting precision and material utilization. With its smart layout algorithm and real-time graphic preview, the ZY7050‑2000 delivers outstanding processing accuracy and speed, making it ideal for applications in garment manufacturing, leather cutting, furniture production, advertising, and packaging.
|
Model number |
ZY7050‑2000 |
|
hardware |
|
|
Camera(pixels) |
20 million / 24 million |
|

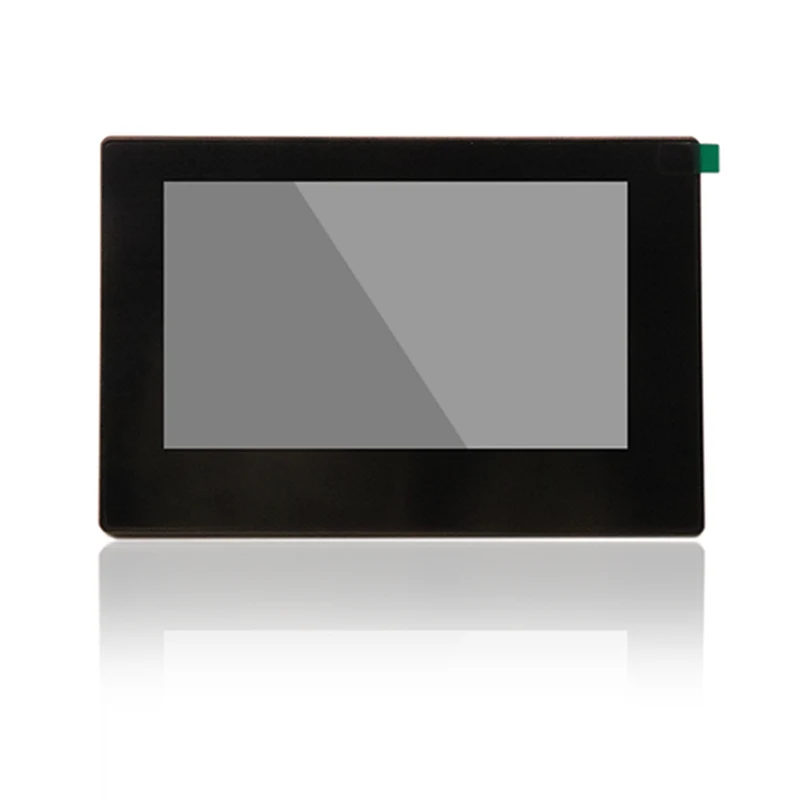

Screen |
Seven inches |
|
Universal outlet |
four |
|
Universal input port |
four |
|
Number of supported platforms |
two |
|
Number of control axes |
7-axis |
|
Number of supported lasers |
two |
|
Disk space(MB) |
128 |
|
Data transmission mode |
Network communication, U disk |
|
Support laser |
Radio frequency Laser, CO2 Glass tube laser |
|
Function |
|
|
Machine vision |
√ |
|
Input-output diagnosis |
× |
|
Counting function |
√ |
|
Processing graphics,track display |
√ |
|
Dispensing function |
√ |
|
Z-axis autofocus function |
√ |
|
Power off and switch off function |
√ |
|
Automatic feed,synchronous feed |
√ |
|
Super format cutting |
√ |
|
Rotary engraving cutting function |
√ |
|
Mirror cutting |
√ |
|
Multilingual |
√ |
|
Offline pause can move,Point,modify the power and Layer parameters such as speed |
√ |
|
Mutual movement of multiple heads |
√ |
|
Process blowing,light blowing, Blow on layers |
√ |
|
Layer pause |
√ |
|
IO configuration |
× |
|
Remote control |
√ |
|
File search |
× |
|
Cutting machine mode, cut webbing |
× |
|
Single/double belt finishing |
√ |
|
Dual platform machining |
√ |
● Automatic extraction of graphic contour lines,software automatic typesetting.
● Support automatic flaw avoidance,support sample hole typesetting,support collinear typesetting.
● Compared with the traditional typesetting software,the operation is simple and easy to use,and the efficiency is several times higher.
● Can be matched with small vision machine,software typesetting,small vision Mark point cutting.
● Leather
● Textile
● Paper
● Soft films
● Synthetic fabrics

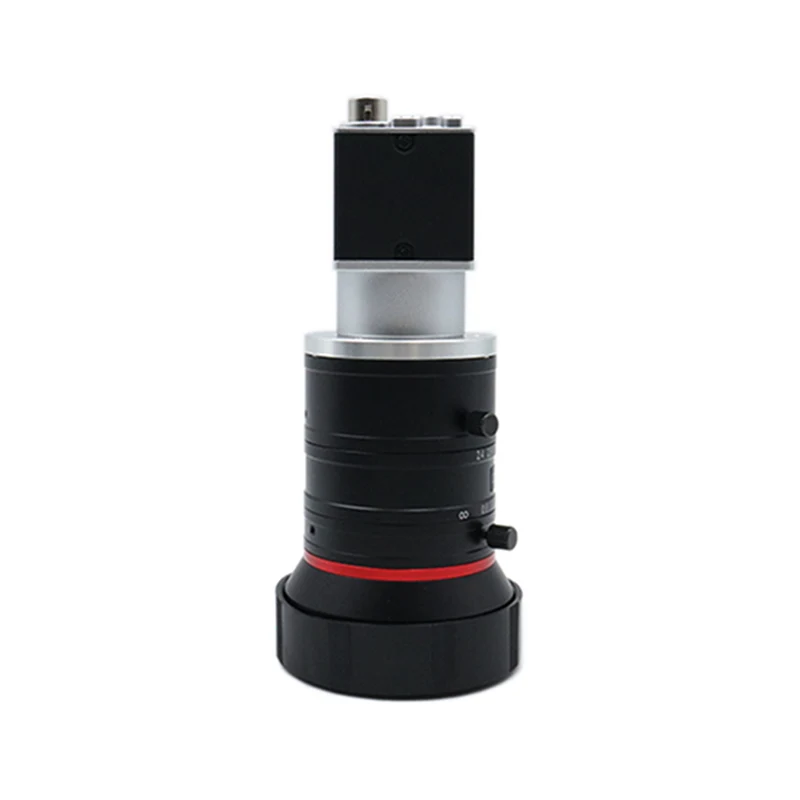

● Vision System: Industrial camera (supports Large-Format vision configuration)
● Control Axes Supports: 4-axis motion control (X1, X2,Y, Z)
● Vision Recognition Capabilities: Automatic edge lifting, multi-point mark recognition, sub-pixel accuracy
● Software Functions: Automatic typesetting, flaw avoidance, collinear and sample hole typesetting
● Cutting Modes: Visual-assisted cutting, Mark point positioning, auto contour matching
● Material Compatibility：Leather, textile, paper, soft films, synthetic fabrics
● Efficiency Advantage: Several times faster than traditional copying and cutting workflows
● Optional Features: Integrated defect detection, template library import, offline operation
● Stable performance
● High visual accuracy
● Seek edge, template two in one
● Supports template deformation matching
● Technology industry leader
● Fast move
● High efficiency
● Strong algorithm
● Outstanding quality
● Plentiful practical data
The standard delivery time is within 30 days after order confirmation and receipt of advance payment. Actual lead time may vary depending on order quantity and customization requirements.
We offer flexible shipping options based on customer preferences, including international express delivery and ocean freight.
If the customer has their own freight forwarder, we are happy to coordinate directly with them.
If not, we can arrange shipping under CFR (Cost and Freight) or CIF (Cost, Insurance, and Freight) terms, ensuring a smooth and cost-effective delivery process.
Our company is committed to providing customers with high-quality products and professional technical services.
We offer pre-sale consultation, including product recommendation and technical guidance.
Our after-sales support includes installation advice, remote troubleshooting, and technical Q&A.
Timely communication and problem-solving are always our priorities to ensure customer satisfaction.
To place an order, please send the order details to our sales team via email. The information should include the product model, quantity, and consignee’s contact details, such as full address, telephone number, fax number, email address, and notification party (if applicable).
Our sales representative will contact you within one working day to confirm the order and provide further assistance.
Air Freight:
Fast and suitable for urgent orders or time-sensitive deliveries. However, it is relatively costly.
For laser controllers or similar products containing electronic components, please note that airlines may impose restrictions, such as limitations on lithium batteries, especially if the controller includes a built-in battery for backup.
Sea Freight:
A more economical option for bulk shipments. However, it requires a longer transit time.
During ocean transportation, the equipment may be exposed to temperature variations, humidity, and salt spray, so adequate protective packaging is necessary to ensure product safety.
International Express Courier:
Customers can either have the shipment arranged by the seller or provide their own courier account for booking and pickup.
After-sales support is primarily provided remotely via internet-based communication. Customers can contact us via email or instant messaging platforms for technical consultation and troubleshooting assistance.
For software-related issues, we can provide support through remote desktop tools to help resolve problems efficiently.
Additionally, we can establish overseas service centers or cooperate with local agents to offer on-site repair services and spare parts replacement.
Each product package includes a detailed user manual and troubleshooting guide, covering frequently asked questions, basic solutions, and technical support contact information.
We are original manufacturer,with a strong R & D team, the most professional product development technology, as well as the most advanced machinery and equipment.
Almost 14 years, and most our management and employees have been in the industry more than 20 years.
Yes, OEM and customized product are welcome.
In the field of customer customized services, our company is equipped with a professional R & D team, the team members have deep industry knowledge and rich experience in product design. It not only includes the appearance design of the product, internal function module configuration optimization, but also covers the development of user-friendly software operation interface and other aspects. Through our OEM/ODM services, you can bring new products to market in a more efficient way, save a lot of research and development time and cost, and seize the opportunity in the fierce market competition.
Yes
Welcome to be our agent, directly message here or email our sales team to get more details.
Yes
We used to have stock available, lead time can be just 1 to 3 business days after your payment done and arrived to our bank account.
Yes
Yes.
